Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 46901 OUTER STUB AXLE 33 splines fits 1994 to 1999 Dodge Ram 2500 and 3500 with Dana 60 front without antilock brakes
Part Number:
46901


UPC:
023913134433
Your Cost $145.44 Sale Price $124.55
You Save $20.89
STATUS:  IN STOCK - FREE SHIPPING

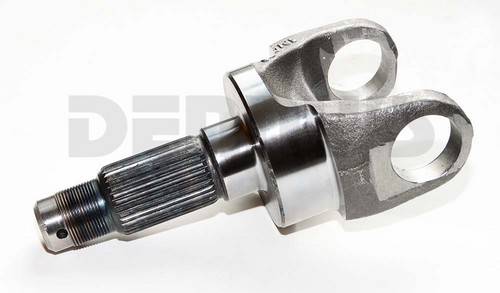

Dana Spicer 46901

OUTER STUB AXLE

  • Fits Dodge Ram 2500 and 3500 with Dana 60 front axle
    • 1994, 1995, 1996, 1997, 1998, 1999
  • Fits both Right side and Left side
  • 33 Splines
  • Same as 75690X but without ABS tone ring and dust shield

DIMENSIONS

  • B1 = 33 Spline
  • B = 7.05 inches
  • U-Joint Lock Ring Dimension = 3 inches
  • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

Use with Spicer SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) Universal Joint...See bottom of this page

  • We will press the SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) U-Joint into the axle shaft FREE of Charge...all you need to do is ask!

Outer Axle Nut and Washer available...please see the bottom of this page to purchase.

Spicer
Dana Spicer 46901 OUTER STUB AXLE 33 splines fits 1994 to 1999 Dodge Ram 2500 and 3500 with Dana 60 front without antilock brakes
Dana Spicer 46901 OUTER STUB AXLE 33 splines fits 1994 to 1999 Dodge Ram 2500 and 3500 with Dana 60 front without antilock brakes
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $145.44 Sale Price $124.55
You Save $20.89

Dana Spicer 46901

OUTER STUB AXLE

  • Fits Dodge Ram 2500 and 3500 with Dana 60 front axle
    • 1994, 1995, 1996, 1997, 1998, 1999
  • Fits both Right side and Left side
  • 33 Splines
  • Same as 75690X but without ABS tone ring and dust shield

DIMENSIONS

  • B1 = 33 Spline
  • B = 7.05 inches
  • U-Joint Lock Ring Dimension = 3 inches
  • U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )

Use with Spicer SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) Universal Joint...See bottom of this page

  • We will press the SPL55-3X (Non Greaseable) or SPL55-4X (Greaseable) U-Joint into the axle shaft FREE of Charge...all you need to do is ask!

Outer Axle Nut and Washer available...please see the bottom of this page to purchase.
