Dana Spicer 706033-1X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING
Part Number:
706033-1X


UPC:
023913128258
Diagram Number:
2
Your Cost $445.95
Sorry, sold out
STATUS:  FACTORY BACK ORDER at this time

Dana Spicer 706033-1X

  • Ring and Pinion Kit
  • 3.54 Ratio (46-13) Gear Set
  • 29 Spline pinion
  • Fits 4.10 and DOWN Diff Carrier Case
  • Fits Dana 60 STANDARD ROTATION
  • Fits Front or Rear

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Spicer
Dana Spicer 706033-1X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 60 Standard Rotation Front/Rear - FREE SHIPPING
Dana Spicer 706033-1X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 60 Standard Rotation
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY BACK ORDER at this time
YOUR COST:  $445.95
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

Dana Spicer 706033-1X

  • Ring and Pinion Kit
  • 3.54 Ratio (46-13) Gear Set
  • 29 Spline pinion
  • Fits 4.10 and DOWN Diff Carrier Case
  • Fits Dana 60 STANDARD ROTATION
  • Fits Front or Rear

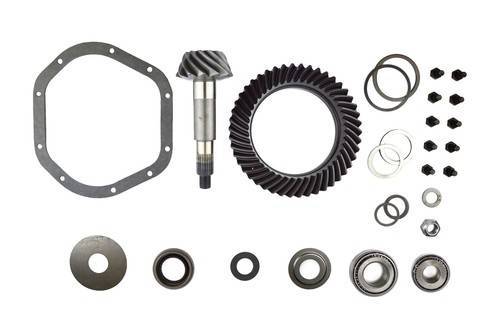

Kit Includes:

  • 34023  PINION GEAR
  • 32503  RING GEAR
  • 34687  GASKET
  • PINION SEAL
  • 706046X  INNER PINION BRG. KIT
  • 706045X  OUTER PINION BRG. KIT
  • 701025X  KIT... Includes the following parts
    • 34643  SLINGER
    • 30982  BAFFLE
    • 42737  PINION THRUST WASHER
  • 701019X  SHIM KIT
  • 701056-1X KIT... Includes the following parts
    • 30275  PINION WASHER
    • 30271  PINION NUT
    • 40638  RING GEAR BOLTS
