SPICER 1-1-473 Fits 1.375 inch Round Shaft with .312 KEY
|
|
Your Cost
$162.61
Sorry, sold out
STATUS:
FACTORY BACK ORDER at this time
|
|
SPICER PTO COMPANION FLANGE for power take off applications
PART NUMBER: 1-1-473
UPC: 023913473235
Part Number: 1-1-473
|

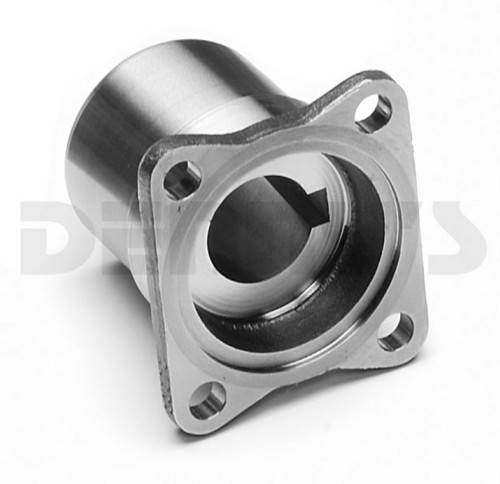

GENERIC PHOTO
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY BACK ORDER at this time
YOUR COST:
$162.61
|
SPICER COMPANION FLANGE for power take off applications
PART NUMBER: 1-1-473

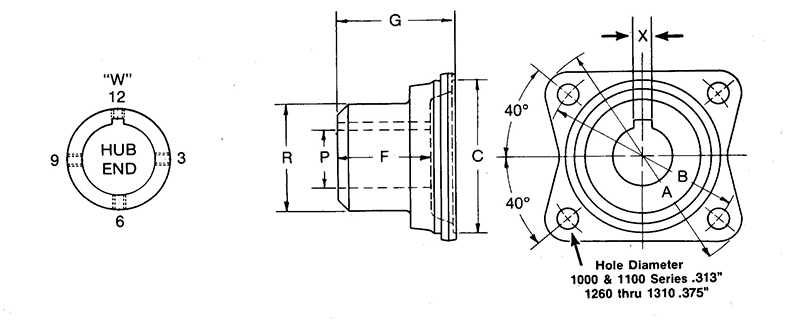

- SERIES 1000, 1110
- P - FITS 1.375 INCH DIAMETER SHAFT
- C - FEMALE PILOT DIAMETER - 2.250 INCHES
- X - KEYWAY WIDTH - .312 INCHES
- W - KEYWAY LOCATION - 12
- W - SET SCREW THREAD DIAMETER - .375 INCHES
- W - SET SCREW LOCATION - 6
- R - HUB DIAMETER - 2.125 INCHES
- F - LENGTH THROUGH HOLE - 1.5 INCHES
- G - FLANGE FACE TO END OF HUB - 2.125 INCHES
- A - TOTAL SWING DIAMETER - 3.50 INCHES
- B - BOLT CIRCLE DIAMETER - 2.75 INCHES
- 4 BOLT HOLES .313 DIAMETER
|
|
GENERIC PHOTO
|
|
