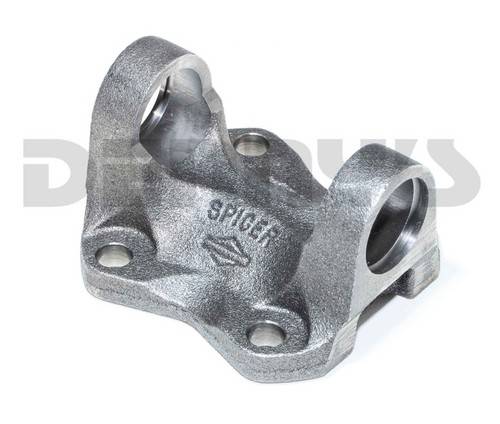

DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot
Part Number:
2-2-329


UPC:
023913228873
Your Cost $28.02
STATUS:  IN STOCK

DANA SPICER PTO FLANGE YOKE for power take off applications

PART NUMBER: 2-2-329

Spicer
DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot
DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $28.02

DANA SPICER FLANGE YOKE for power take off applications

PART NUMBER: 2-2-329

  • SERIES 1310
  • C - MALE PILOT DIAMETER -  2.375 INCHES
  • D - U-JOINT BEARING CAP DIAMETER - 1.062 INCHES
  • E - WIDTH OF YOKE  -  3.469 INCHES
  • G - FLANGE FACE TO CENTERLINE  - 1.375 INCHES
  • A - FLANGE SWING DIAMETER - 3.875 INCHES
  • B - BOLT CIRCLE DIAMETER - 3.125 INCHES
  • 4 BOLT HOLES .375 DIAMETER
  • JOINT ANGLE   - 20 DEGREES
  • OUTSIDE SNAP RING
  • X - 2.0 inches
  • Y - 2.375 inches

Denny's Driveshafts Flange Yoke Dimension Diagram

DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot

DANA SPICER 2-2-329 Fits 1280, 1310 Series companion flange with 2.375 pilot
