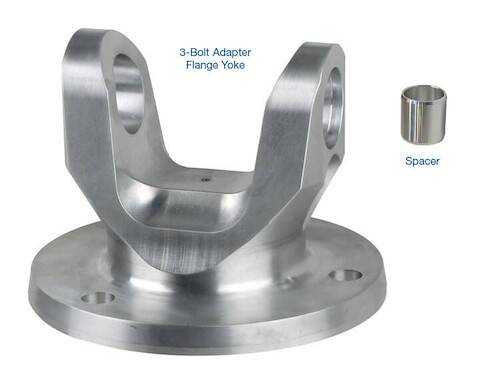

Sonnax T35-GMFD-01K Aluminum Adapter Flange Yoke 3 bolt 1350 series fits 6L80, 6L90, 8L90, 10L90, TR3160, TR6060 transmissions

Part Number:
T35-GMFD-01K

UPC:

Your Cost $268.10 **
**Add to cart to see today's price

STATUS: IN STOCK - FREE SHIPPING - FINAL SALE

Sonnax T35-GMFD-01K

Fits 6L80, 6L90, 8L90, 10L90, TR6060, TR3160
3 Bolt Aluminum Adapter Flange Yoke

Allows you to connect a 1350 series spline and slip style driveshaft to the applications listed below.

Fits GM 6L80, 6L90 transmissions in 2010 to 2016 Chevrolet Camaro. Fits front and rear
- Fits 2017 and newer Camaro 8L90 with .500 inch pilot when spacer is installed
- T35-GMFD-01K Includes spacer for 8L90, 10L90
Fits TR6060 manual transmissions with 3 bolt flange in 2015 and newer Ford Mustang V8 applications. Does NOT fit rear.
Fits 2005, 2006 GTO rear end 3 bolt pinion flange only.
- DOES NOT FIT 2004 GTO rear.

DIMENSIONS

Series = 1350
Fits u-joint cap to cap = 3.625 inches
Fits u-joint cap diameter = 1.188 inches
Pilot Type = Female
Pilot Diameter = Fits 0.631 inch pilot stud - use without spacer
- Fits 8L90, 10L90 with 0.556 pilot stud - use with the spacer installed
Bolt Circle Diameter = 4.33 inches
Bolt Hole Diameter = 0.500 inches
Bolt Hole Center to Center = 3.750 inches
Bolt Count = 3
Flange Face to Centerline = 3.0 inches
Flange Outer Diameter = 5.450 inches
Flange thickness = .437 inches
Weight = 1.980 pounds
Material = 6061-T6 Aluminum

Sonnax T35-GMFD-01K Aluminum Adapter Flange Yoke 3 bolt 1350 series fits 6L80, 6L90, 8L90, 10L90, TR3160, TR6060 transmissions

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING - FINAL SALE

YOUR COST: $268.10 **
**Add to cart to see today's price

>>>>> FINAL SALE: This ALUMINUM part number is a Final Sale ITEM. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<

Sonnax T35-GMFD-01K

Fits 6L80, 6L90, 8L90, 10L90, TR6060, TR3160
3 Bolt Aluminum Adapter Flange Yoke

Allows you to connect a 1350 series spline and slip style driveshaft to the applications listed below.

Fits GM 6L80, 6L90 transmissions in 2010 to 2016 Chevrolet Camaro. Fits front and rear
- Fits 2017 and newer Camaro 8L90 with .500 inch pilot when spacer is installed
- Includes spacer for 8L90, 10L90
Fits TR6060 manual transmissions with 3 bolt flange in 2015 and newer Ford Mustang V8 applications. Does NOT fit rear.
Fits 2005, 2006 GTO rear end 3 bolt pinion flange only.
- DOES NOT FIT 2004 GTO rear.

DIMENSIONS

Series = 1350
Fits u-joint cap to cap = 3.625 inches
Fits u-joint cap diameter = 1.188 inches
Pilot Type = Female
Pilot Diameter = Fits 0.631 inch pilot stud - use without spacer
- Fits 8L90, 10L90 with 0.556 pilot stud - use with the spacer installed
Bolt Circle Diameter = 4.33 inches
Bolt Hole Diameter = 0.500 inches
Bolt Hole Center to Center = 3.750 inches
Bolt Count = 3
Flange Face to Centerline = 3.0 inches
Flange Outer Diameter = 5.450 inches
Flange thickness = .437 inches
Weight = 1.980 pounds
Material = 6061-T6 Aluminum

The ideal upgrade for modified performance vehicles, Sonnax 3-bolt adapter flange yoke T35-GMFD-01K makes it easy to convert a two-piece driveline to a one-piece, U-joint-style driveline.

Eliminates the troublesome guibo and/or CV joint(s)
Great for drivetrain swaps and retrofits in custom applications such as street rods and hot rods
Manufactured from 6061-T6 aluminum
Precision-machined for excellent fit and balance
Includes spacer for 8L90, 10L90
