Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

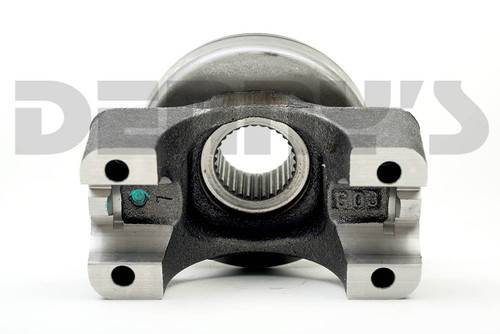

AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
Part Number:
40055350


UPC:

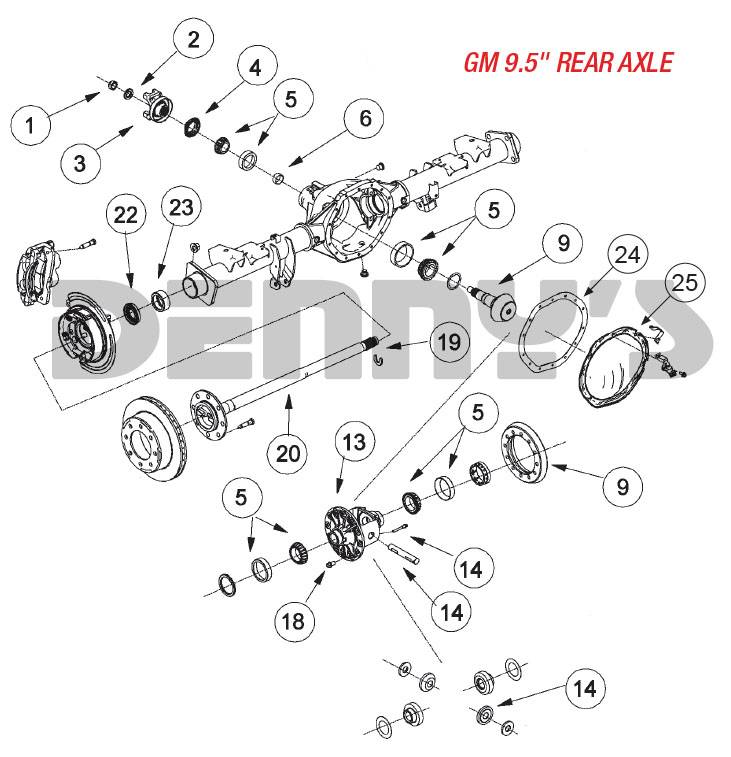

Diagram Number:
3
Your Cost $58.93
STATUS:  IN STOCK

AAM 40055350

Pinion yoke - OEM Replacement

  • Fits Chevrolet and GMC light truck 9.5 inch GM 14 bolt
    • 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
  • 1410/1415 series
  • 30 spline
  • Fits OUTSIDE Snap Ring style universal joints listed below
  • Requires 26064029 pinion seal listed below

DIMENSIONS

  • Height = 3.375 inches
  • Tab to Tab inside dimension = 4.188 inches
  • U-Joint saddle diameter = 1.188 inches
AAM
AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $58.93

AAM 40055350

Pinion yoke - OEM Replacement

  • Fits Chevrolet and GMC light truck 9.5 inch GM 14 bolt
    • 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013
  • 1410/1415 series
  • 30 spline
  • Fits OUTSIDE Snap Ring style universal joints listed below
  • Requires 26064029 pinion seal listed below

DIMENSIONS

  • Height = 3.375 inches
  • Tab to Tab inside dimension = 4.188 inches
  • U-Joint saddle diameter = 1.188 inches
AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end

AAM 40055350 Pinion Yoke 1410/1415 series OEM replacement for 1998 to 2013 Chevrolet and GMC light truck 9.5 inch 14 bolt rear end
