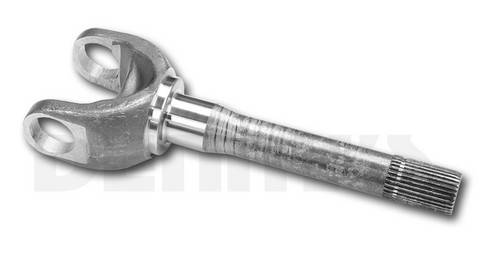

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

Part Number:
48903

UPC:

023913134488

Your Cost ~~$162.95~~ Sale Price $155.95

You Save $7.00

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 48903

OUTER AXLE SHAFT
Fits FORD F-350 with DANA 60 FRONT Axle
- 1988-1/2, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

FITS the following axle universal joints
- 5-806X ....old Dana Spicer part number..... see SPL55-3X
- SPL55-3X Non Greaseable
- SPL55-4X Greaseable
DIMENSIONS
- B1 = 1.31 diameter wiith 30 splines
- B =11.4 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
SPECIAL NOTES:
- USE 700014 and 37308 for 1988-1/2 to 1991-1/2...see parts listed below
- USE 708084 for 1992 and newer...DOES NOT require seal retainer 37308....see parts listed below

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$162.95~~ Sale Price $155.95

You Save $7.00

DANA SPICER 48903

OUTER AXLE SHAFT
Fits FORD F-350 with DANA 60 FRONT Axle
- 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

FITS the following axle universal joints
- 5-806X ....old Dana Spicer part number..... see SPL55-3X
- SPL55-3X Non Greaseable
- SPL55-4X Greaseable
DIMENSIONS
- B1 = 1.31 diameter wiith 30 splines
- B =11.4 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
SPECIAL NOTES:
- USE 700014 and 37308 foer 1988-1/2 to 1991-1/2...see parts listed below
- USE 708084 for 1992 and newer...DOES NOT require seal retainer 37308....see parts listed below

Denny's Driveshafts Comparison Dana Spicer 48903 to 620085

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

You May Also Need These Parts to Complete the Job

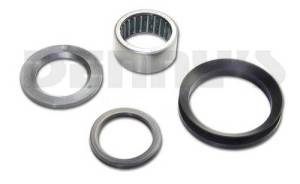

Dana Spicer 37308 Seal Retainer for Outer Axle Shaft fits CHEVY with DANA 60 Front Part#: 37308 $4.95	Spicer 700014 Spindle Bearing and Seal Set fits CHEVY and GMC with DANA 60 Part#: 700014 $26.47
Dana Spicer 708084 Spindle Bearing and Seal Set fits 1992 to 1998 FORD F350 with DANA 60 Part#: 708084 ~~$53.95~~ $48.95	Dana Spicer 50381 Outer Axle Seal Fits 1992 to 1998 FORD F-250, F-350 with DANA 60 Front Axle Part#: 50381 $11.95
DANA SPICER SPL55-3X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint replaces 5-806X Part#: SPL55-3X $49.95	DANA SPICER SPL55-4X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint GREASEABLE Part#: SPL55-4X $55.95
