with 8.5 inch 10 Bolt Front Axle

Yukon YP SP706570 replacement for Dana Spicer 706570X SPINDLE with bearing and seals BIG Bearing style fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with DANA 44 or 8.5 inch 10 bolt front axle - FREE SHIPPING

Part Number:
YP SP706570

UPC:

883584323419

Your Cost $187.95

STATUS: IN STOCK - FREE SHIPPING

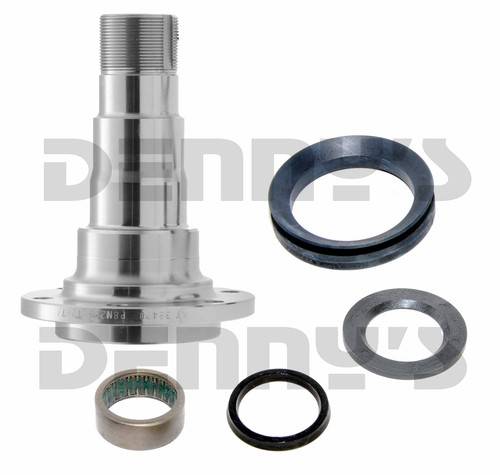

Yukon YP SP706570 replacement for Dana Spicer 706570X

SPINDLE with bearing and seal kit

Comes with 706527X splindle beaing and seal kit
Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $187.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Yukon YP SP706570 replacement for Dana Spicer 706570X

SPINDLE with bearing and seal kit

Comes with 706527X splindle beaing and seal kit
Comes with inner spindle bearing installed at the proper depth.

Fits CHEVY K5 Blazer with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits CHEVY K10, K20 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

Fits GMC JIMMY with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

Fits GMC K15, K25 with Dana 44 or GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987

6 bolt holes

Big bearing style

DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

Also known as part #: YPSP706570

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts

You May Also Need These Parts to Complete the Job

Dana Spicer 36326-2 Spindle Stud Bolt and Nut 3/8 - 24 fits 1977 to 1991 Chevy and GMC front spindle all with 8.5 inch 10 BOLT front axle Part#: 36326-2 $2.35	DANA SPICER 31139 Outer Spindle Nut for Chevy and GMC K5, K10, K20 with GM 8.5 inch FRONT Part#: 31139 $6.34
DANA SPICER 21588X Inner Spindle Nut WITH PIN for Chevy and GMC K5, K10, K20 with GM 8.5 inch FRONT Part#: 21588X $12.95	DANA SPICER 28068X Spindle Nut Set for DANA 30, 44 and GM 8.5 inch FRONT 1.625-16 thread size Part#: 28068X $16.95
DANA SPICER 36569 - Spindle Washer Locking Ring with holes for Manual Locking Hubs Part#: 36569 $2.54	DANA SPICER 39909 Spindle Washer Locking Ring with holes for Auto Locking Hubs Part#: 39909 ~~$32.10~~ $26.88
