Yukon YP SP706570 replacement for Dana Spicer 706570X SPINDLE with bearing and seals fits 1977 to 1992 Jeep J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes DANA 44 Front Axle - FREE SHIPPING

Part Number:
YP SP706570

UPC:

883584323419

Your Cost $187.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Yukon YP SP706570 replacement for Dana Spicer 706570X

Fits JEEP J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes Dana 44 Front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

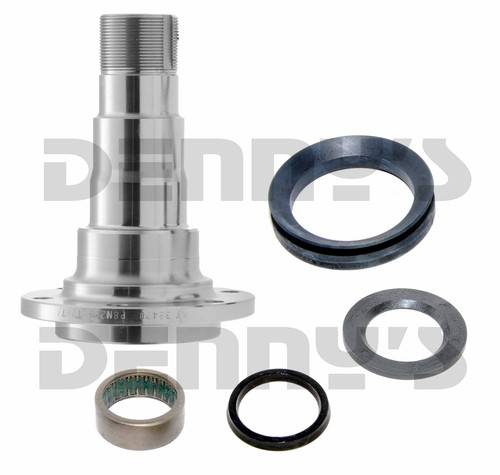

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
6 bolt holes
Big bearing style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $187.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Yukon YP SP706570 replacement for Dana Spicer 706570X

Fits JEEP J10, J20, Cherokee, Honcho, Wagoneer, Grand Wagoneer with disc brakes Dana 44 Front axle
- 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

SPINDLE with bearing and seal kit
- Comes with 706527X spindle bearing and seal kit
- Comes with inner spindle bearing installed at the proper depth.
6 bolt holes
Big bearing style

DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

Also known as part #: YPSP706570

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
