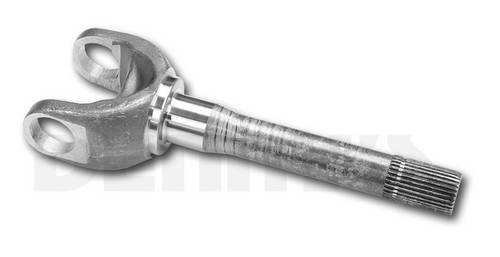

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

Part Number:
48903

UPC:

023913134488

Your Cost ~~$162.95~~ Sale Price $155.95

You Save $7.00

STATUS: IN STOCK - FREE SHIPPING

DANA SPICER 48903

OUTER AXLE SHAFT
Fits FORD F-350 with DANA 60 FRONT Axle
- 1988-1/2, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

FITS the following axle universal joints
- 5-806X ....old Dana Spicer part number..... see SPL55-3X
- SPL55-3X Non Greaseable
- SPL55-4X Greaseable
DIMENSIONS
- B1 = 1.31 diameter wiith 30 splines
- B =11.4 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
SPECIAL NOTES:
- USE 700014 and 37308 for 1988-1/2 to 1991-1/2 ....see parts listed below
- USE 708084 for 1992 to 1998 ....see parts listed below

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: ~~$162.95~~ Sale Price $155.95

You Save $7.00

DANA SPICER 48903

OUTER AXLE SHAFT
Fits FORD F-350 with DANA 60 FRONT Axle
- 1988-1/2, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998

FITS the following axle universal joints
- 5-806X ....old Dana Spicer part number..... see SPL55-3X
- SPL55-3X Non Greaseable
- SPL55-4X Greaseable
DIMENSIONS
- B1 = 1.31 diameter wiith 30 splines
- B =11.4 inches Centerline of u-joint to end of yoke
- U-Joint Snap Ring Dimension = 3 inches
- U-Joint Bearing Cap Diameter = 1.375 inches ( 1 3/8 inches )
SPECIAL NOTES:
- USE 700014 and 37308 for 1988-1/2 to 1991-1/2 ....see parts listed below
- USE 708084 for 1992 to 1998 ....see parts listed below

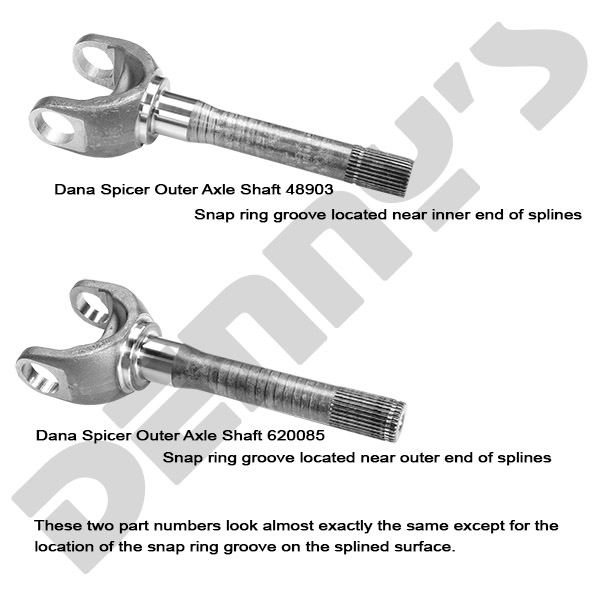

Denny's Driveshafts Comparison Dana Spicer 48903 to 620085

DANA SPICER 48903 OUTER AXLE 30 spline fits 1988-1/2 to 1998 F-350 with DANA 60 FRONT

You May Also Need These Parts to Complete the Job

Dana Spicer 700014 Spindle Bearing and Seal Set fits 1978 to 1991 1/2 FORD F250 and F350 with DANA 60 Part#: 700014 $26.47	Dana Spicer 37308 Seal Retainer for Outer Axle Shaft fits FORD 1978 to 1988 with DANA 60 Front Part#: 37308 $4.95

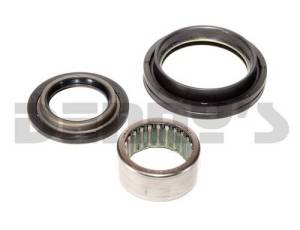

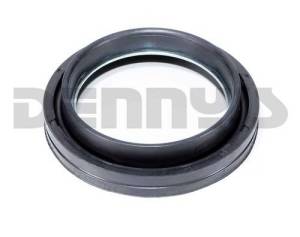

Dana Spicer 708084 Spindle Bearing and Seal Set fits 1992 to 1998 FORD F350 with DANA 60 Part#: 708084 ~~$53.95~~ $47.95	Dana Spicer 50381 Outer Axle Seal Fits 1992 to 1998 FORD F-250, F-350 with DANA 60 Front Axle Part#: 50381 $11.95
DANA SPICER SPL55-3X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint replaces 5-806X Part#: SPL55-3X $55.78	DANA SPICER SPL55-4X Universal Joint Dana 50 Dana 60 4x4 Front Axle U-Joint GREASEABLE Part#: SPL55-4X $61.77

Please enter your email address in order to be notified when this item is available.

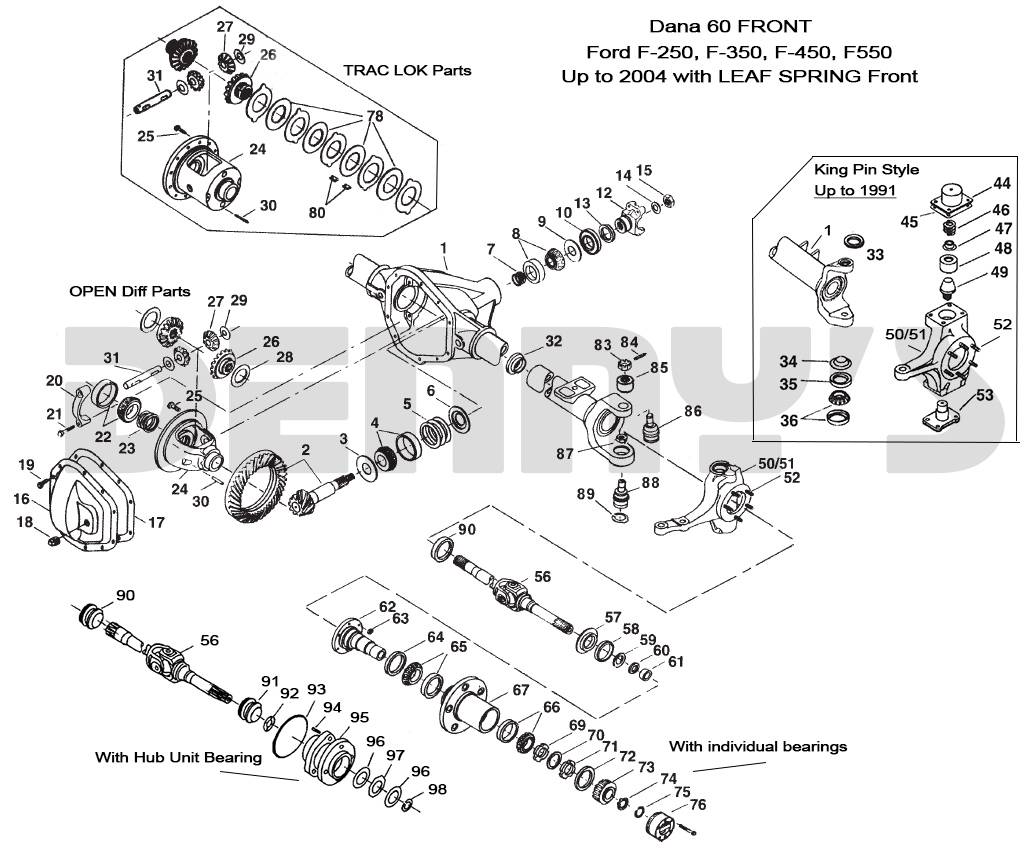

DANA 60 FRONT - FORD 1975 to 2004 > AXLE PARTS > OUTER AXLE SHAFT > F250, F350 OUTER AXLE - 1988-1/2 to 1998
