DANA SPICER 39906 OUTER AXLE 9.81 inches 19 splines fits 1980 to 1988 Ford F-250, 1980 to 1985 F-350 and 88-1/2 to 91 F-150 and BRONCO with Dana 44 IFS front axle

Part Number:
39906

UPC:

023913139674

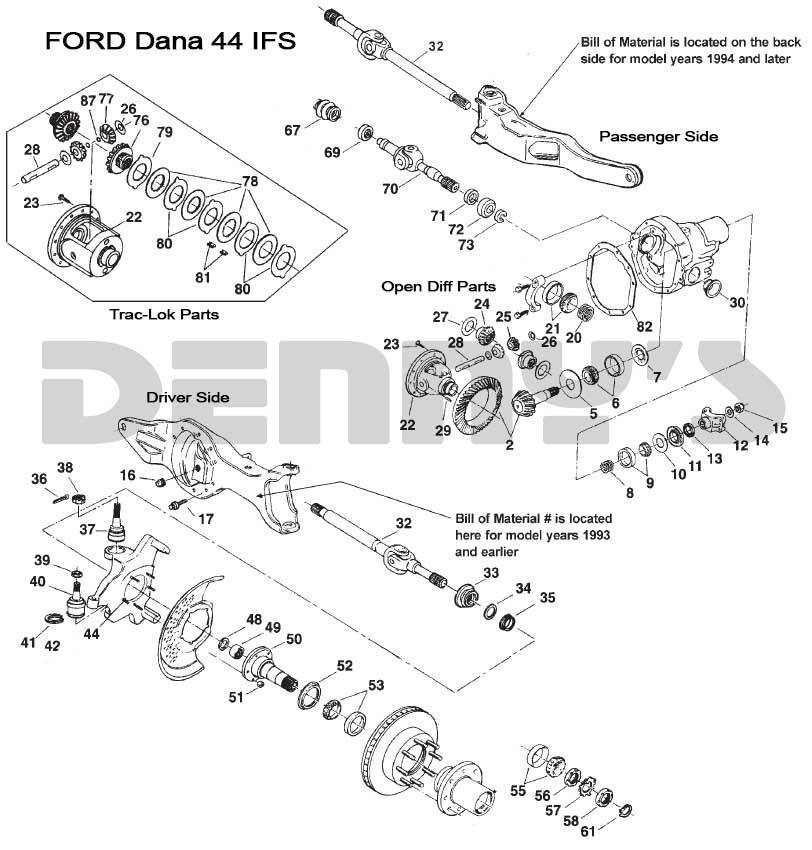

Diagram Number:
32-Outer

Your Cost $84.85

STATUS: IN STOCK

DANA SPICER 39906

OUTER AXLE SHAFT for DANA 44 IFS

Fits FORD BRONCO from 1988-1/2, 1989, 1990, 1991 with DANA 44 IFS FRONT
Fits FORD F-150 from 1988-1/2, 1989, 1990, 1991 with DANA 44 IFS FRONT
Fits FORD F-250 from 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 with DANA 44 IFS FRONT
Fits FORD F-350 from 1980, 1981, 1982, 1983, 1984, 1985 with DANA 44 IFS FRONT

19 SPLINES
FITS 5-760X UNIVERSAL JOINT
9.81 INCHES Centerline of u-joint to end of yoke

DANA SPICER 39906 OUTER AXLE 9.81 inches 19 splines fits 1980 to 1988 Ford F-250, 1980 to 1985 F-350 and 88-1/2 to 91 F-150 and BRONCO with Dana 44 IFS front axle

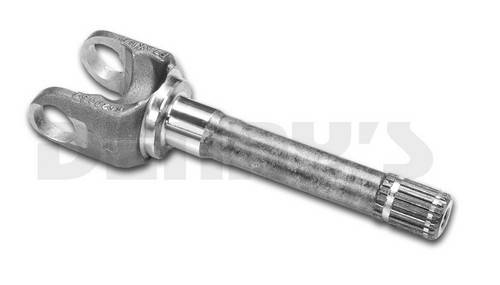

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $84.85

DANA SPICER 39906

OUTER AXLE SHAFT for DANA 44 IFS

Fits FORD BRONCO from 1988-1/2, 1989, 1990, 1991 with DANA 44 IFS FRONT
Fits FORD F-150 from 1988-1/2, 1989, 1990, 1991 with DANA 44 IFS FRONT
Fits FORD F-250 from 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988 with DANA 44 IFS FRONT
Fits FORD F-350 from 1980, 1981, 1982, 1983, 1984, 1985 with DANA 44 IFS FRONT

FITS 5-760X UNIVERSAL JOINT

B1 = 1.250 inch diameter with 19 splines

B = 9.81 inches Centerline of u-joint to end of yoke
U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )

IMPORTANT: Please be sure that your original axle length matches B = 9.81 inches before ordering

Another dimension to check is shown in the photo below.

Denny's comparison of Dana Spicer 39905 and 39906

DANA SPICER 39906 OUTER AXLE 9.81 inches 19 splines fits 1980 to 1988 Ford F-250, 1980 to 1985 F-350 and 88-1/2 to 91 F-150 and BRONCO with Dana 44 IFS front axle
