706570XKT SPINDLE Kit Everything you need for one side including spindle, bearings, seals, nuts, studs, snap ring, and retainer fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with 8.5 inch 10 bolt front axle

Part Number:
706570XKT

UPC:

Your Cost $272.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

706570XKT

Everything you need for one side including spindle, bearings, seals, nuts, washer, studs, snap ring, and seal retainer
Kit fits ONE SIDE

Fits CHEVY K5 Blazer, K10, K20, GMC JIMMY, K15, K25 with GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

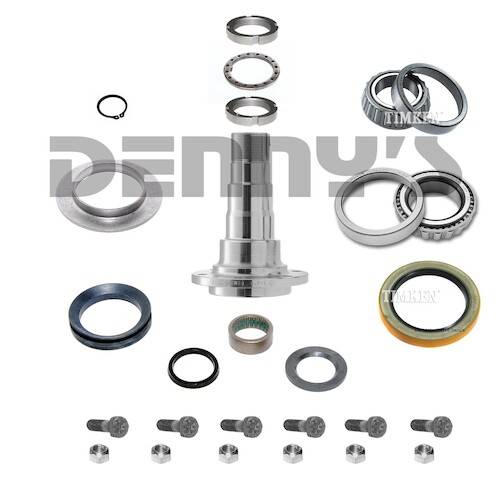

706570XKT KIT INCLUDES

(1) Yukon YP SP706570 Spindle
(1) Spicer spindle internal needle bearing and seal kit
- Comes with inner needle bearing installed at the proper depth.
(1) Timken Inner wheel bearing
(1) Timken Outer wheel bearing
(1) Timken wheel hub seal
(1) Spicer Snap ring for outer axle
(6) Spicer spindle mounting studs and nuts
(2) Spicer spindle nuts
(1) Spicer spindle washer
(1) Seal Retainer for Outer Axle

706570XKT SPINDLE Kit Everything you need for one side including bearings, seals, nuts, studs, snap ring, and retainer fits 1978 to 1991 CHEVY K5 Blazer, K10, K20, GMC Jimmy, K15, K25 with 8.5 inch 10 bolt front axle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $272.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

706570XKT

Everything you need for one side including spindle, bearings, seals, nuts, washer, studs, snap ring, and seal retainer
Kit fits ONE SIDE

Fits CHEVY K5 Blazer, K10, K20, GMC JIMMY, K15, K25 with GM 8.5 inch 10 bolt front axle

1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991

706570XKT KIT INCLUDES

(1) Yukon YP SP706570 Spindle
(1) Spicer spindle internal needle bearing and seal kit
- Comes with inner needle bearing installed at the proper depth.
(1) Timken Inner wheel bearing
(1) Timken Outer wheel bearing
(1) Timken wheel hub seal
(1) Spicer Snap ring for outer axle
(6) Spicer spindle mounting studs and nuts
(2) Spicer spindle nuts
(1) Spicer spindle washer
(1) Seal Retainer for Outer Axle

Spindle DIMENSIONS

A = 1-5/8 in. OD for Outer Wheel Bearing
B = 2 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-7/16 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .390 in.

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts
