Dana Spicer 706017-3X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 44 - FREE SHIPPING
Part Number:
706017-3X


UPC:
023913128708
Diagram Number:
2 KIT
Your Cost $521.30 Sale Price $490.96
You Save $30.34
STATUS:  FACTORY DIRECT TO YOU

Dana Spicer 706017-3X

  • Ring and Pinion Kit
  • 3.54 Ratio (46-13) Gear Set
  • 26 Spline Pinion
  • Fits 3.73 and DOWN Diff Carrier Case
  • Fits Dana 44 STANDARD ROTATION
  • Fits Front or Rear

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Spicer
Dana Spicer 706017-3X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 44 - FREE SHIPPING
Dana Spicer 706017-3X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 44
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $521.30 Sale Price $490.96
You Save $30.34
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

>>>>> SPECIAL ORDER PART:  This part number is special ordered from the factory and shipped direct to you.  It is NOT Cancellable and NOT Returnable.  Please make your selection carefully! <<<<<

Dana Spicer 706017-3X

  • Ring and Pinion Kit
  • 3.54 Ratio (46-13) Gear Set
  • 26 Spline Pinion
  • Fits 3.73 and DOWN Diff Carrier Case
  • Fits Dana 44 STANDARD ROTATION
  • Fits Front or Rear

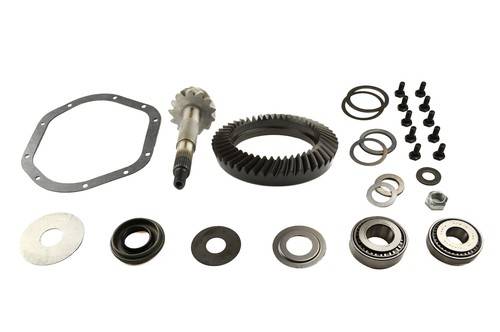

Kit Includes:

  • 32171  PINION GEAR
  • 18437  RING GEAR
  • 34685  GASKET
  • PINION SEAL
  • 706031X  INNER PINION BRG.KIT
  • 706030X  OUTER PINION BRG.KIT
  • 701023X  KIT... Includes the following parts
    • 30764  PINION OIL SLINGER
    • 30765  PINION OIL BAFFLE
  • 701017X  DIFF & PINION SHIM KIT
  • 701071-3X  KIT... Includes the following parts
    • 30186  PINION WASHER
    • 30185  .750-16  PINION NUT
    • 41221  RING GEAR BOLTS

Dana Spicer 706017-3X gear set kit replaces old Dana Spicer part number 706613-4X



FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

Dana Spicer 706017-3X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 44 - FREE SHIPPING

Dana Spicer 706017-3X Ring and Pinion Gear Set Kit 3.54 Ratio (46-13) for Dana 44

You May Also Need These Parts to Complete the Job

Dana Spicer 707021-1X DANA 44 OPEN Diff CARRIER ASSEMBLY LOADED Case Fits 3.73 and DOWN gear sets use with 30 spline axles FREE SHIPPING
$465.95
