DANA 44 - RAM DISCONNECT FRONT - DODGE > AXLE PARTS > AXLES - OUTER

Dana Spicer 74917X OUTER AXLE SHAFT Fits RAM 1500, 2500LD with DANA 44 DISCONNECT 1994 to 2001 with ABS BRAKES

Part Number:
74917X

UPC:

023913135904

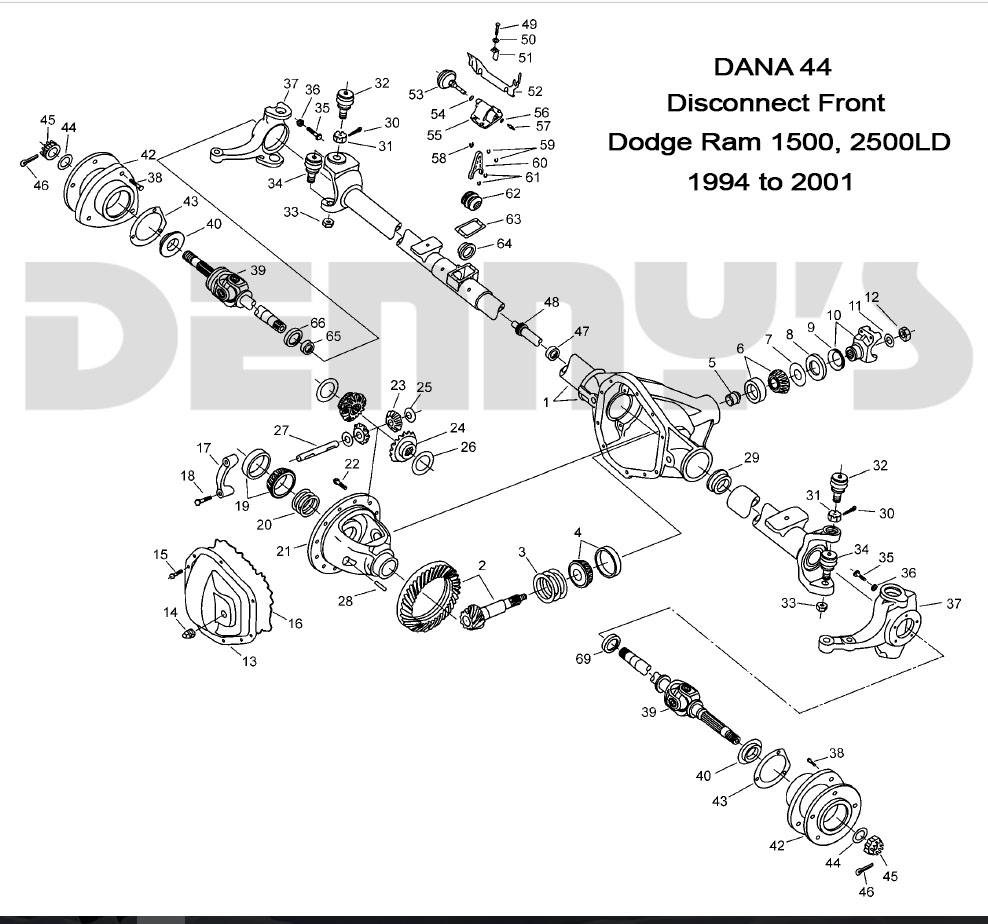

Diagram Number:
39-OUTER

Your Cost $115.95

STATUS: IN STOCK - FREE SHIPPING

Dana Spicer 74917X

OUTER AXLE SHAFT

Fits RAM 1500, 2500LD with DANA 44 DISCONNECT 1994 to 2001 with ABS BRAKES

OUTER Axle Shaft- 33 Spline

Genuine Dana Spicer Part

Spicer

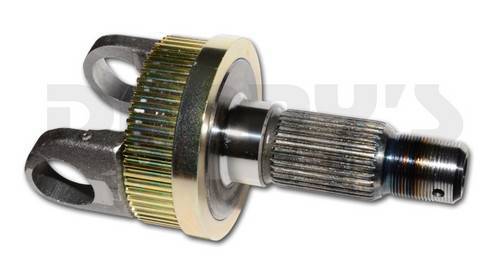

Dana Spicer 74917X OUTER AXLE SHAFT Fits RAM 1500, 2500LD with DANA 44 DISCONNECT 1994 to 2001 with ABS BRAKES

Spicer 74917X Dodge Ram 1500 and 2500 Outer Axle shaft with ABS Ring

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $115.95

DANA SPICER 74917X

OUTER AXLE SHAFT for ABS Brakes
- 33 spline
- Dimension "B1" = 1.41 inch diameter
- Dimension "B" = 6.75 inches
- Comes with ABS Tone Ring
Fits 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001 Dodge Ram 1500 & 2500 LD with Dana 44 Front
- under 8800 Gross Vehicle Weight
Fits both RIGHT and LEFT sides
Requires Spicer 5-760X Universal Joint...See bottom of this page
- U-Joint Snap Ring Dimension = 2.188 inches ( 2 3/16 inches )
- U-Joint Bearing Cap Diameter = 1.188 inches ( 1 3/16 inches )
Axle NUT and WASHER at bottom of this page

image/jpeg

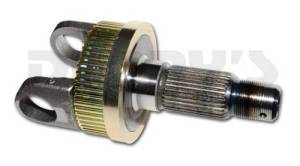

Dana Spicer 74917X OUTER AXLE SHAFT Fits RAM 1500, 2500LD with DANA 44 DISCONNECT 1994 to 2001 with ABS BRAKES

Spicer 74917X Dodge Ram 1500 and 2500 Outer Axle shaft with ABS Ring

You May Also Need These Parts to Complete the Job

Dana Spicer 5-760X Front Axle Universal Joint fits 1994 to 2001 DODGE Ram 1500, 2500LD DANA 44 Disconnect Front Axle Part#: 5-760X $28.56	DANA SPICER 49991 DANA 44 DISCONNECT OUTER AXLE fits 1994 to 2001 Dodge Ram 1500 and 2500 WITHOUT ABS BRAKES Part#: 49991 $80.95
Dana Spicer 46085 Nut and 45523 Washer set 1994 to 2002 Dodge Ram 1500, 2500, 3500 Outer Axle 4x4 with Dana 44 and Dana 60 Front Part#: 46085/45523 $9.20	DANA SPICER 76815-1X RIGHT SIDE 15 SPLINE INNER AXLE fits 1994 to 2001 Dodge Ram 1500 & 2500 with DANA 44 DISCONNECT Part#: 76815-1X $280.95

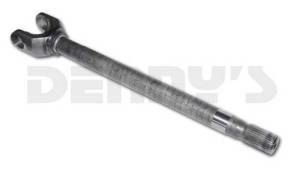

DANA SPICER 76814-1X LEFT SIDE INNER AXLE 30 Spline fits 1994 to 2001 Dodge Ram 1500 & 2500 with DANA 44 Disconnect Front Axle Part#: 76814-1X $252.95
