DT Components DRK-336AMK Master Bearing Kit fits Dana 50 IFS and Dana 50 solid Front 1980 - 2002 Ford F250, F350 and fits 2000

DT Components DRK-336AMK Master Bearing Kit fits Dana 50 IFS and Dana 50 solid Front 1980 - 2002 Ford F250, F350 and fits 2000 - 2005 Ford Excursion

Part Number:
DRK-336AMK

UPC:

Your Cost $185.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

Part Number: DRK336AMK

DRK-336AMK Master Differential Bearing and Seal Kit - DT Components

DRK-336AMK Fits Ford Dana 50 Front
- Ford Excursion Front
  - 2000, 2001, 2002, 2003, 2004, 2005
- Ford F250 with Dana 50 IFS Front
  - 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996,
    1997, 1998, 1999, 2000, 2001, 2002
- Ford F250 with Dana 50 Solid Front
  - 1999, 2000, 2001, 2002
- Ford F350 with Dana 50 IFS Front
  - 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996,
    1997, 1998
- Ford F350 with Dana 50 Solid Front
  - 1999, 2000, 2001, 2002

DT Components DRK-336AMK Master Bearing Kit fits Dana 50 IFS and Dana 50 solid Front 1980 - 2002 Ford F250, F350 and fits 2000 - 2005 Ford Excursion

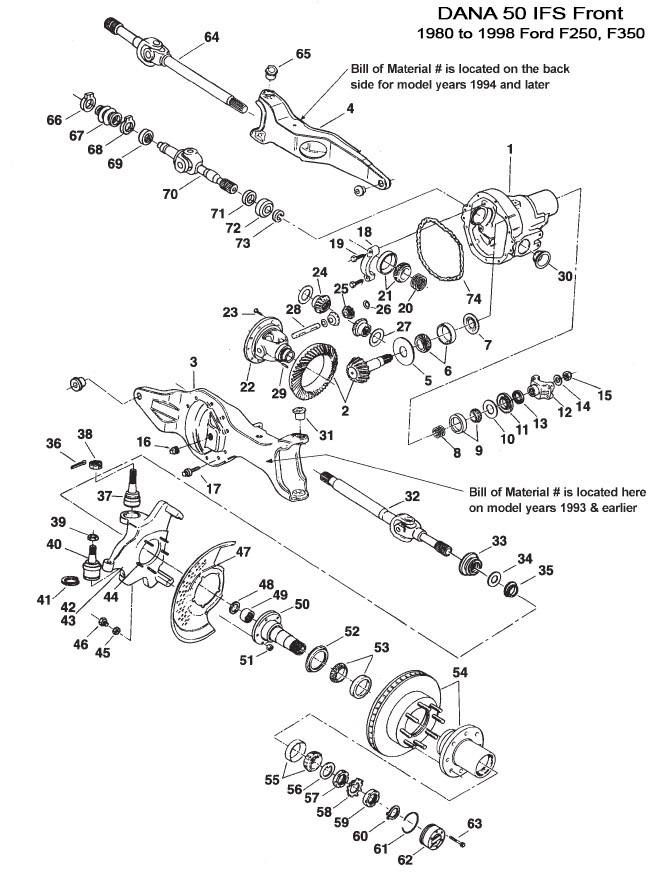

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $185.95

Part Number: DRK336AMK

DRK-336AMK Master Differential Bearing and Seal Kit - DT Components

DRK-336AMK Fits Ford Dana 50 Front
- Ford Excursion Front
  - 2000, 2001, 2002, 2003, 2004, 2005
- Ford F250 with Dana 50 IFS Front
  - 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996,
    1997, 1998, 1999, 2000, 2001, 2002
- Ford F250 with Dana 50 Solid Front
  - 1999, 2000, 2001, 2002
- Ford F350 with Dana 50 IFS Front
  - 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996,
    1997, 1998
- Ford F350 with Dana 50 Solid Front
  - 1999, 2000, 2001, 2002

Parts in this kit

(2) Differential Bearing: JLM104948 - JLM104911A
(1) Pinion Head Bearing: HM88649 - HM88610
(1) Pinion Tail Bearing: 02872 - 02820
(1) Pinion Seal: 5778 (1.552 x 3.160)

(1) Pinion Seal: DS50531 (1.552 x 3.160)

(1) Crush sleeve: CS338
(1) Pinion Nut: PN8F
(1) Gear Marking & Brush: GMC1-BR1
(1) Threadlocker: TL1
(1) Sealer RTV Silicone
(1) Pinion Bearing Shims: SK5
(1) Pinion Depth Shims: SK54
(1) Differential Bearing Shims: SK21
(10) Ring Gear Bolts: RGB14
(1) Pinion Nut Washer: 30186

DT Components DRK-336AMK Master Bearing Kit fits Dana 50 IFS and Dana 50 solid Front 1980 - 2002 Ford F250, F350 and fits 2000 - 2005 Ford Excursion
