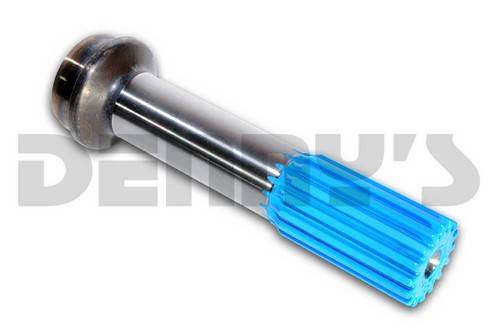

DANA SPICER 2-40-2451 SPLINE Fits 2.0 inch .083 wall tube 1.375 inch Diameter with 16 Splines
|
|
Your Cost
$147.46
STATUS:
FACTORY DIRECT TO YOU
|
|
DANA SPICER SPLINE 2-40-2451
- Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 16
- K = 6.188
- L = 2.250
- R = 5.625
- Butt Diameter = 1.845
UPC: 023913234072
Part Number: 2-40-2451
|
DANA SPICER 2-40-2451 SPLINE Fits 2.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT TO YOU
YOUR COST:
$147.46
|
DANA SPICER SPLINE 2-40-2451
- Fits any series 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 16
- K = 6.188
- L = 2.250
- R = 5.625
- Butt Diameter = 1.845
|
|
DANA SPICER 2-40-2451 SPLINE Fits 2.0 inch .083 wall tubing 1.375 inch Diameter with 16 Splines
|
|
