Driveshaft and Driveline Parts > SPLINES - DANA SPICER

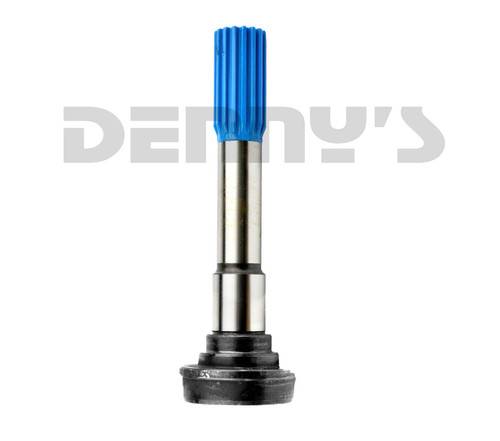

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tube 1.375 inch Diameter with 15/16 Splines

Part Number:
2-53-711

UPC:

023913235345

Your Cost ~~$109.63~~ Sale Price $91.82

You Save $17.81

STATUS: IN STOCK

DANA SPICER 2-53-711

MIDSHIP SPLINE
Use with Center Support Bearing

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 15/16 Splines

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$109.63~~ Sale Price $91.82

You Save $17.81

DANA SPICER 2-53-711

MIDSHIP SPLINE
Use with Center Support Bearing
Fits any series 15 Based on 16 Spline SLIP YOKE designed for 1.375 inch diameter spline
- Fits TUBE DIAMETER = 3.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
- Major SPLINE Diameter = 1.375
- SPLINES = 15/16
- STYLE = 2
- B = 1.688
- C = 1.378
- G = .812
- K = 9.031
- L = 2.500
- Y = 7.969
SPECIAL NOTES:
- Blue GLIDECOAT on Spline for smooth operation and long life (DO NOT REMOVE this coating)
- May use boot 211916X or dust cap 211121X, order seperate

CLICK HERE : For ALL DANA SPICER Spline Part Numbers, Specifications and Dimensions

Dana Spicer 2-53-711 MIDSHIP SPLINE Fits 3.0 inch .083 wall tubing 1.375 inch Diameter with 15/16 Splines
