Driveshaft and Driveline Parts > SPLINES - DANA SPICER

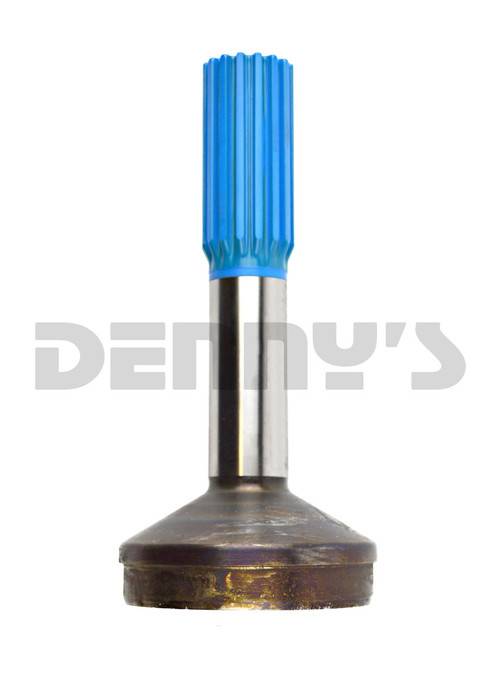

Dana Spicer 3-40-1501 SPLINE Fits 4 inch .083 wall Driveshaft tube 1.5 inch Diameter with 16 Splines

Part Number:
3-40-1501

UPC:

023913231316

Your Cost ~~$72.95~~ Sale Price $67.95

You Save $5.00

STATUS: IN STOCK

DANA SPICER 3-40-1501 SPLINE

Fits 4 inch .083 wall Driveshaft tubing

1.5 inch Diameter with 16 Splines

Dana Spicer 3-40-1501 SPLINE Fits 4 inch .083 wall Driveshaft tubing 1.5 inch Diameter with 16 Splines

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$72.95~~ Sale Price $67.95

You Save $5.00

DANA SPICER SPLINE 3-40-1501

Fits any series 16 Spline SLIP YOKE designed for 1.5 inch diameter spline
Fits TUBE DIAMETER = 4 inch OUTSIDE TUBE Diameter
Fits TUBE WALL THICKNESS = .083 inch Tube wall thickness
Major SPLINE Diameter = 1.5
SPLINES = 16
K = 7.875
L = 3.0
R = 6.688

NOTE: This spline is typically used for 1350 and 1410 series driveshafts.

SCROLL DOWN to see the recommended parts to go with this spline part number.
Great for vehicles that require a larger tube diameter to handle the extra load of carrying heavy cargo or pulling trailers.
Great choice when a 4 inch tube is required for long length driveshafts.

Dana Spicer 3-40-1501 SPLINE Fits 4 inch .083 wall Driveshaft tubing 1.5 inch Diameter with 16 Splines
