Street Rod Driveshafts > STEEL Street Rod Driveshafts > 2.5 inch Tube 45 inch max length

Denny's STR-2530

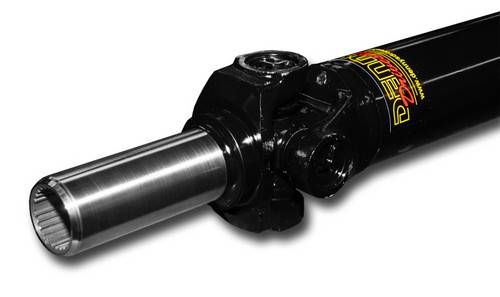

Custom Built 2.5 inch Denny's Street Rod Driveshaft complete with Slip Yoke and Universal Joints

• Recommended for STREET use in lightweight vehicles with less than 400 horsepower
• 1330 slip yoke and front u-joint
• Any size rear u-joint to match your rear end yoke.  See details below!

Includes:

• 2.5 inch Diameter Tube - DOM Steel
  • "IF YOU CAN POSSIBLY TWIST OUR STREET ROD STEEL DRIVESHAFT TUBING OR BREAK OUR WELDS...WE'LL REPLACE IT FREE"
  • All Denny's Driveshafts are assembled using the latest computer controlled welding equipment for the strongest welds possible.
• Spicer or Neapco 1330 series SLIP YOKE
  • Available to fit 26 spline Chrysler 904 automatic and 26 spline manual transmission
  • Available to fit all 27 and 32 spline GM automatic transmissions
  • Available to fit all 27 and 32 spline Muncie, Borg Warner, AutoGear, Saginaw, Richmond
  • Available to fit 28 spline Ford C4 and AOD automatics (NOT available in 1310 for 4R70W see 1330 shafts)
  • Available to fit 28 spline T5, T10, Top Loader, Tremec
  • Available to fit 31 spline Ford C6, FMX, Top Loader, Tremec TKO600, T56 Magnum

• Dana Spicer NON Greaseable Universal Joints
  • FRONT universal joint 1330 series to match slip yoke

  • REAR universal joint can be 1310, 1330, 1350, 7260, 7290, 3R to match your rear end pinion yoke.
    • ***Flat Flange Yoke option available for Ford 8.8 and JAG rear
    • ***Please be sure to add the correct flange yoke to the shopping cart when placing your order
• All Denny's Driveshafts are High Speed - High RPM Balanced and Tested for smooth operation.  This is priceless when it comes to customer satisfaction!
• All Denny's Driveshafts come Fully Assembled and ready to bolt in!

•
  • Denny's Free Lifetime Labor means for example if you ever need it shortened, re-balanced, change u-joints....the Labor is FREE
    • Please see our Free Lifetime Labor page for details. CLICK HERE


HOW TO MEASURE

You have 2 choices ...see both choices below

CHOICE >>>>>> If your rear end has a u-bolt or strap and bolt style PINION YOKE then use Diagram "B":

• MAXIMUM LENGTH restrictions for STR-2530:

  • DIAGRAM "B" ...Number "B6" should be approximately 45 inches or less.

    • If a longer length is required please see our 3.0 inch Street Rod Driveshaft
• CLICK HERE to see Diagram "B" now

CHOICE >>>>>> Use Diagram "K" ONLY if you have a Ford 8.8 or JAG rear with a FLAT FLANGE.

• PLEASE NOTE:  There will be an Additional cost for the correct flange yoke.
• MAXIMUM LENGTH restrictions for STR-2530:

  • DIAGRAM "K" ...Number "55" should be approximately 47 inches or less.
    • CLICK HERE to see Diagram "K" now
    • If a longer length is required please see our 3.0 inch Street Rod Driveshaft
  • DIAGRAM "L" ...we will also need NUMBERS 58, 59 and 60 on this page to build your order

    • CLICK HERE to see Diagram "L" now
•
