6263551 Pinion Yoke High Angle 1330 series strap & bolt style fits DANA 35 with 26 splines replacement for Dana Spicer 2-4-7631-1
Part Number:
6263551


UPC:

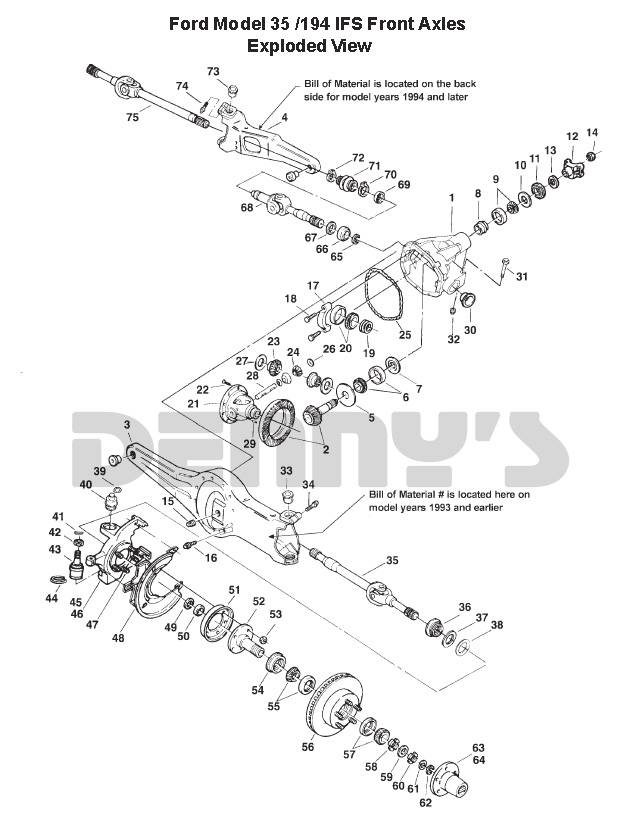

Diagram Number:
12
Your Cost $69.95
STATUS:  IN STOCK

6263551

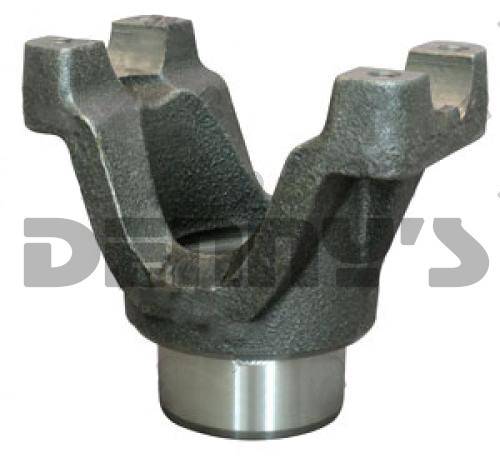

1330 series Pinion Yoke - High Angle

Fits Dana 35 REAR

  • 26 spline
  • 1.844 hub seal surface diameter
  • 1330 series
  • Strap and Bolt Style
  • Replacement for Dana Spicer 2-4-7631-1
  • DOES NOT FIT Dana 30 or Dana 44


6263551 Pinion Yoke High Angle 1330 series strap & bolt style fits DANA 35 with 26 splines replacement for Dana Spicer 2-4-7631-1
6263551 Pinion Yoke High Angle 1330 series strap & bolt style fits DANA 35 with 26 splines replacement for Dana Spicer 2-4-7631-1
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $69.95

6263551

1330 series Pinion Yoke - High Angle

Fits Dana 35 REAR

  • 26 spline
  • 1.844 hub seal surface diameter
  • 1330 series
  • Strap and Bolt Style
  • Replacement for Dana Spicer 2-4-7631-1
  • DOES NOT FIT Dana 30 or Dana 44

Dimensions

  • Strap & Bolt Set Sold Separately
  • 1330 series
  • 26 spline
  • SPLINE OD = 1.146
  • D = 1.062
  • E = 3.625
  • Q = 1.375
  • R = 1.844
  • S = 3.562
  • COUNTERBORE DEPTH = .120
