Driveshaft and Driveline Parts > SLIP YOKES - For Automatic and Manual Transmission > Tremec > T-56 Magnum, TKO 600 with 31 SPLINE Rear Output > Fits 3 5/8 by 1 3/16 U-Joint - 1350 Series

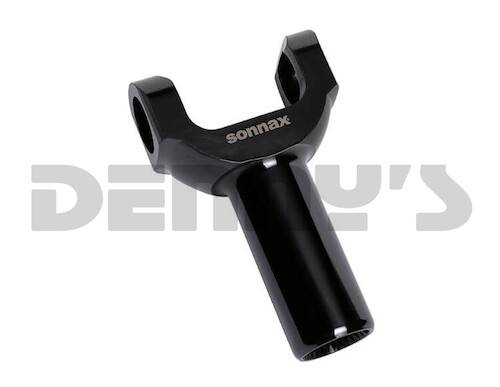

SONNAX T3-3-2491S Chromoly 1350 slip yoke 5.470 inch specific for TREMEC Magnum F model transmission

Part Number:
T3-3-2491S

UPC:

Your Cost $168.78

STATUS: IN STOCK - FREE SHIPPING

SONNAX T3-3-2491S

1350 Series Slip Yoke
31 splines
CHROMOLY
Fits TREMEC MAGNUM "F" with 31 spline output
- Short barrel specific to the Magnum "F" transmission

SONNAX

SONNAX T3-3-2491S Chromoly 1350 slip yoke 5.470 inch specific for TREMEC Magnum F model transmission

SONNAX T3-3-2491S Chromoly 1350 slip yoke 5.470 inch specific for TREMEC Magnum F model transmission

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $168.78

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

SONNAX T3-3-2491S

1350 Series Slip Yoke
31 splines
CHROMOLY
Fits TREMEC MAGNUM "F" with 31 spline output
- Dimension #3 - 3.780 inch Short barrel length specific to the Magnum "F" transmission

DIMENSIONS

Length to center of u-joint... Dimension #1 = 5.470 inches
Barrel Diameter... Dimension #2 = 1.685 inches
Barrel Length... Dimension #3 = 3.780 inches
U-joint cap diameter... Dimension #4 = 1.188 inches
U-joint width... Dimension #5 = 3.625 inches
Series... 1350
Spline count... 31

SONNAX T3-3-2491S Chromoly 1350 slip yoke 5.470 inch specific for TREMEC Magnum F model transmission

SONNAX T3-3-2491S Chromoly 1350 slip yoke 5.470 inch specific for TREMEC Magnum F model transmission
