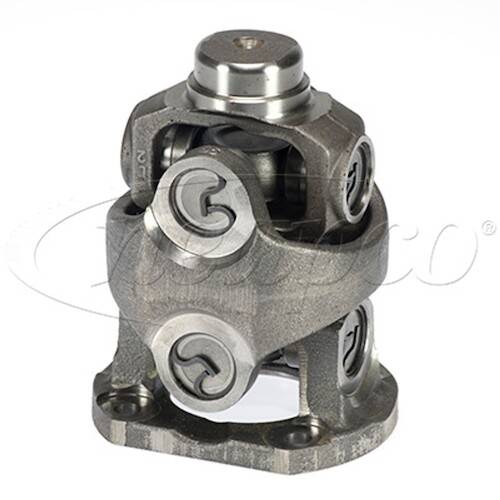

Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
Part Number:
N921049G


UPC:
083869030975
Your Cost $232.95
STATUS:  SOLD OUT...More Coming Soon

Part Number: N921049G

32 degree 1350 series Double Cardan CV Head with stud yoke

Fits Tubing Diameter (In): 2.0 OD x 0.120 wall

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 1.770
  • Center Line To Center Line Of "H" Yoke (In): 2.875
  • Center Line To Point Of Weld (In): 1.438
  • CV Head Style: Flat Flange
  • Driveline Series: 1350
  • Bolt Hole Dia. (In):  0.469 drilled
  • Maximum Joint Angle (Degrees): 32.0
  • Overall Length (In): 5.940
  • Pilot Diameter (In): 3.125



Neapco
Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $232.95

Part Number: N921049G

32 degree 1350 series Double Cardan CV Head with stud yoke

Fits Tubing Diameter (In): 2.0 OD x 0.120 wall

  • Bolt Circle (In): 4.250
  • Butt Diameter (In): 1.770
  • Center Line To Center Line Of "H" Yoke (In): 2.875
  • Center Line To Point Of Weld (In): 1.438
  • CV Head Style: Flat Flange
  • Driveline Series: 1350
  • Bolt Hole Dia. (In):  0.469 drilled
  • Maximum Joint Angle (Degrees): 32.0
  • Overall Length (In): 5.940
  • Pilot Diameter (In): 3.125



Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot

Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
