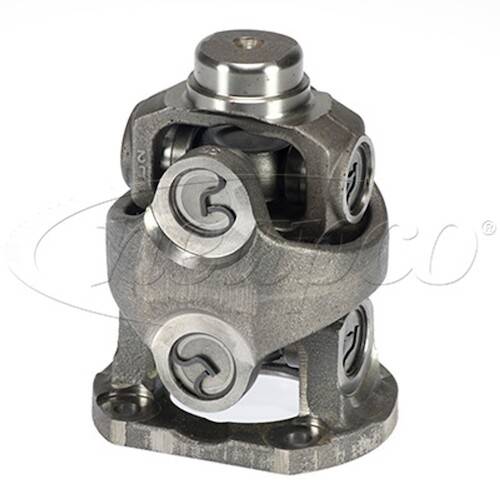

Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
|
|
Your Cost
$232.95
STATUS:
SOLD OUT...More Coming Soon
|
|
Part Number: N921049G
32 degree 1350 series Double Cardan CV Head with stud yoke
Fits Tubing Diameter (In): 2.0 OD x 0.120 wall
- Bolt Circle (In): 4.250
- Butt Diameter (In): 1.770
- Center Line To Center Line Of "H" Yoke (In): 2.875
- Center Line To Point Of Weld (In): 1.438
- CV Head Style: Flat Flange
- Driveline Series: 1350
- Bolt Hole Dia. (In): 0.469 drilled
- Maximum Joint Angle (Degrees): 32.0
- Overall Length (In): 5.940
- Pilot Diameter (In): 3.125
UPC: 083869030975
Part Number: N921049G
|
Neapco N921049G 32 degree 1350 series Double Cardan CV Head assembly with stud yoke fits 2.0 x 0.120 wall tubing 4.250 bolt circle 3.125 inch pilot
|
