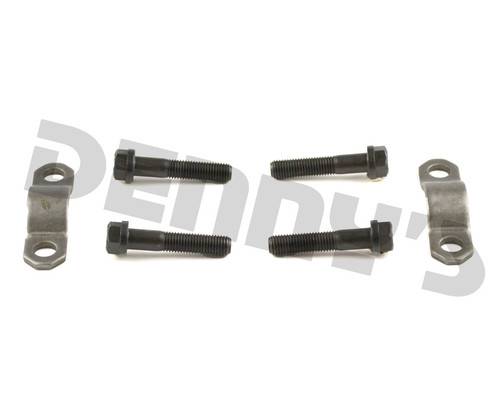

Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
|
|
Your Cost
$6.46
STATUS:
IN STOCK
|
|
DANA SPICER 2-70-48X
Fits 1.125 cap x 1.812 CL
- Strap and Bolt Set for GM 3R series Inside "C" Clip style pinion yokes 7.5, 7.6, 8.5, 8.6, 9.5 inch
- Comes with 2 straps and 4 bolts.
CENTER to CENTER of BOLT HOLES: 1.812
- BE SURE your yoke has 4 threaded holes and NO locating tabs
BOLT HOLE DIAMETER: 5/16 inch
Replaces Neapco 1-0025, Precision 530-10
UPC: 023913123079
Part Number: 2-70-48X
|
Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: IN STOCK
YOUR COST:
$6.46
|
DANA SPICER 2-70-48X
Fits 1.125 cap x 1.812 CL
- Strap and Bolt Set for GM 3R series Inside "C" Clip style pinion yokes 7.5, 7.6, 8.5, 8.6, 9.5 inch
- Comes with 2 straps and 4 bolts.
CENTER to CENTER of BOLT HOLES: 1.812
- BE SURE your yoke has 4 threaded holes and NO locating tabs
BOLT HOLE DIAMETER: 5/16 inch
Replaces Neapco 1-0025, Precision 530-10
|
Model/Part #: 2-70-48X |
Series |
GM 3R |
Fits Brg. Cap Dia. |
1.125 |
Thread Dia. |
.312-24 |
Bolt Length |
1.5 |
Strap No. |
|
Bolt No. |
|
C/L to C/L |
1.812 |
Bolt Torque (lb.ft) |
30-35 |
|
Dana Spicer 2-70-48X Strap & Bolt Set fits 1.125 bearing cap diameter 1.812 CL on GM 3R series Inside "C" clip style 7.5, 7.6, 8.5, 8.6, 9.5 inch pinion yoke
|
|
