SPLINE and SLIP - inches TOTAL movement

Dana Spicer 2-3-5023651KX Slip Yoke long travel 1310 series 18 based on 20 splines 1.338

Part Number:
2-3-5023651KX

UPC:

023913840563

Your Cost $210.95

STATUS: IN STOCK - FREE SHIPPING

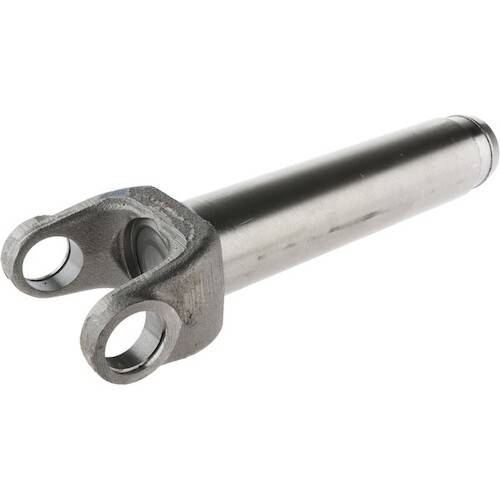

Dana Spicer 2-3-5023651KX

1310 Series Long Travel Slip Yoke - use with 2-40-5023529 spline for 4.5 inches of in/out movement

Spline/Hole Outside Diameter = 1.338
Number of Splines = 18 based on 20 - 2 wide spaces
Series = 1310
Lock up style = OUTSIDE
Universal Joint Width = 3.219
D - Universal Joint Bore = 1.062
Comes with Dust Cap Part Number = 211121X
- Dust Cap Style = 1 PIECE PRESS ON
F - Center of u-joint bore to plug = 1.437
J - Center of u-joint bore to End of Slip yoke barrel = 9.812

Dana Spicer 2-3-5023651KX Slip Yoke long travel 1310 series 18 based on 20 splines 1.338

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $210.95

Dana Spicer 2-3-5023651KX

1310 Series Long Travel Slip Yoke - use with 2-40-5023529 spline for 4.5 inches of in/out movement

Spline/Hole Outside Diameter = 1.338
Number of Splines = 18 based on 20 - 2 wide spaces
Series = 1310
Lock up style = OUTSIDE
Universal Joint Width = 3.219
D - Universal Joint Bore = 1.062
Comes with Dust Cap Part Number = 211121X
- Dust Cap Style = 1 PIECE PRESS ON
F - Center of u-joint bore to plug = 1.437
J - Center of u-joint bore to End of Slip yoke barrel = 9.812

Dana Spicer 2-3-5023651KX Slip Yoke long travel 1310 series 18 based on 20 splines 1.338

You May Also Need These Parts to Complete the Job

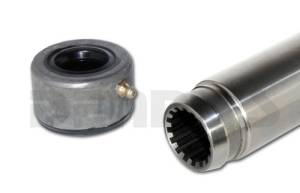

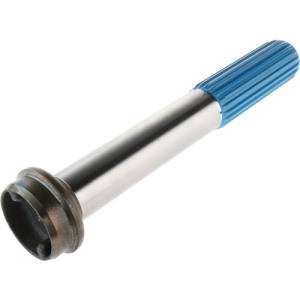

Dana Spicer 2-40-5023529 Spline long travel 8.875 inches 19 based on 20 splines fits 2.0 OD x 0.120 wall tube Part#: 2-40-5023529 $166.95	Dana Spicer 211121X PRESS ON Seal with grease fitting fits SPICER slip yoke designed for a press on seal with 1 3/8 inch diameter spline Part#: 211121X $15.95
11-528D Combination Universal Joint to connect 1310 to 1330 series Part#: 11-528D $24.95	DANA SPICER 5-460X - 1310 to 1350 Series Combination U-joint..Greaseable Part#: 5-460X $36.95
Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
