Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 29833-1X Right Side Complete axle assembly 1973 to 1980 GM Truck & Blazer with Dana 44 - FREE SHIPPING
Part Number:
29833-1X


UPC:
023913134976

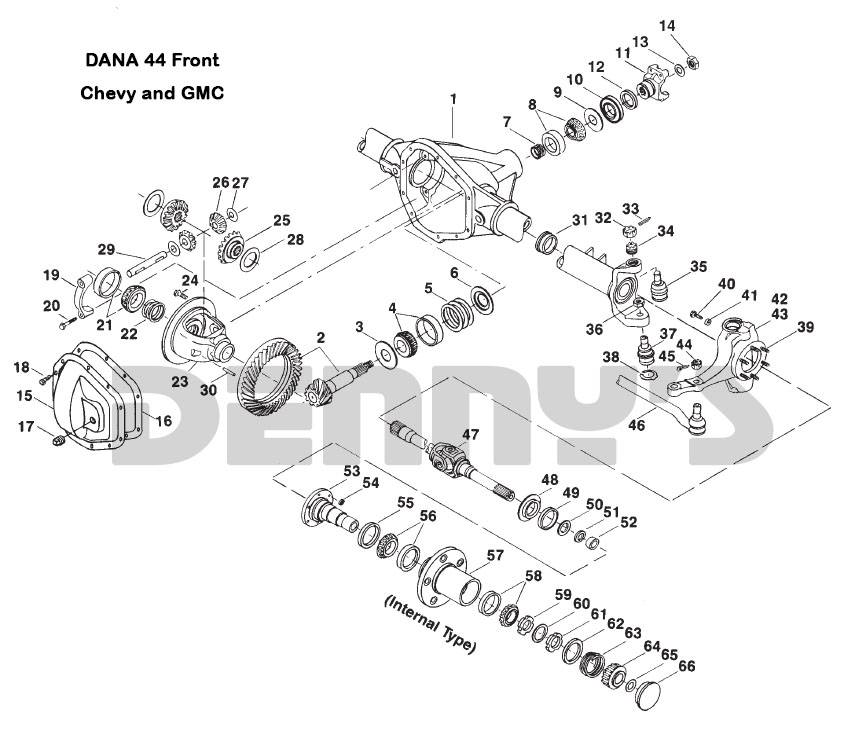

Diagram Number:
47
Your Cost $295.95
STATUS:  IN STOCK - FREE SHIPPING

DANA SPICER 29833-1X

  • General Motors Truck & Blazer 1973 to 1980 with Dana 44
  • RIGHT SIDE COMPLETE AXLE ASSEMBLY with 30 spline inner ready to bolt in
  • PASSENGER SIDE


Spicer
Dana Spicer 29833-1X Right Side Complete axle assembly 1973 to 1980 GM Truck & Blazer with Dana 44 - FREE SHIPPING
Dana Spicer 29833-1X Right Side Complete axle assembly 1973 to 1980 GM Truck & Blazer with Dana 44 - FREE SHIPPING
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK - FREE SHIPPING
YOUR COST:  $295.95
This item qualifies for FREE GROUND SHIPPING to the lower 48 states

FREE GROUND Shipping**

**Free Ground Shipping to lower 48 States ONLY...Alaska and Hawaii at reduced rates.

DANA SPICER 29833-1X

  • General Motors Truck & Blazer 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980 with Dana 44 Front Axle
    • RIGHT SIDE COMPLETE AXLE ASSEMBLY with 30 spline inner
    • PASSENGER SIDE
    • Genuine DANA SPICER Replacement FULLY ASSEMBLED Front Axle Shaft and ready to bolt in
  • INCLUDES
    • Seal retainer
    • Outer Axle
    • Inner Axle
    • Universal Joint

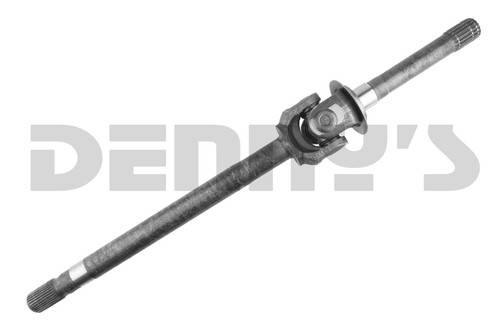

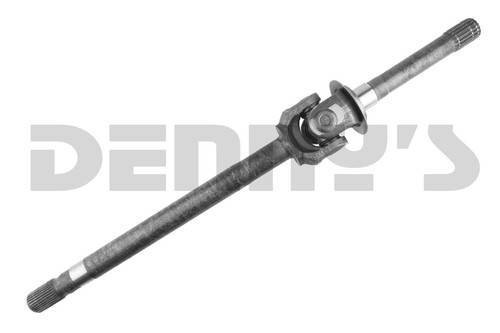

RIGHT SIDE COMPLETE AXLE ASSEMBLY...Inner, Outer and U-joint

  • Dimension "A" = 28.44 inches overall
  • Dimension "B1" = 19 Spline - 1.25 inch diameter
  • Dimension "B" = 9.94 inches
  • Dimension "C1" = 30 Spline -1.31 inch diameter
  • Dimension "C" = 18.5 inches
  • Comes complete with Spicer 5-760X Universal Joint.
