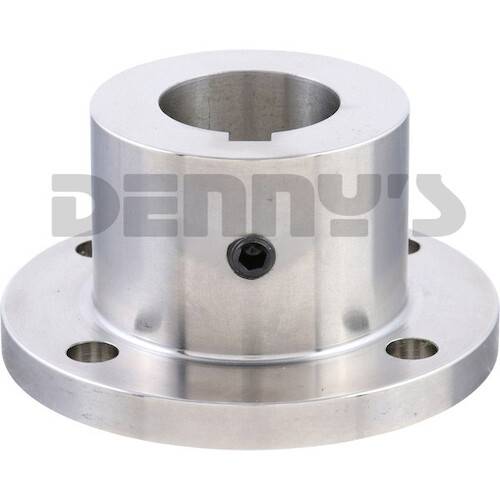

Dana Spicer 2-1-1313-5 PTO Companion Flange 1.375 inch Round Bore with 0.312 Keyway, 3.125 Bolt Circle, 2.375 female pilot

Part Number:
2-1-1313-5

UPC:

023913237998

Your Cost ~~$190.95~~ Sale Price $110.95

You Save $80.00

STATUS: IN STOCK

Dana Spicer 2-1-1313-5

PTO Companion Flange

Dana Spicer 2-1-1313-5 PTO Companion Flange 1.375 inch Round Bore with 0.312 Keyway, 3.125 Bolt Circle, 2.375 female pilot

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$190.95~~ Sale Price $110.95

You Save $80.00

Dana Spicer 2-1-1313-5

COMPANION FLANGE for power take off applications

Series 1280, 1310

P - 1.375 Inch Diameter Bore
- X - 0.312 in. Keyway
C - 2.375 in Female Pilot
B - Bolt Circle Diameter - 3.125 in
- 4 Bolt Holes 0.375 in. Diameter Drilled
- Bolt Pattern - Rectangular
  - 2.0 inches
  - 2.375 inches

W - Set Screw THREAD Diameter - 0.375 in.
- W - Set Screw Location - 12
- Set Screw Included

Dana Spicer 2-1-1313-5 PTO Companion Flange 1.375 inch Round Bore with 0.312 Keyway, 3.125 Bolt Circle, 2.375 female pilot
