Driveshaft and Driveline Parts > COMPANION FLANGES > ROUND SHAFT with KEYWAY > Use with 1280/1310 Series Flange Yokes > Fits 1.875 inch ROUND SHAFT with .500 KEYWAY

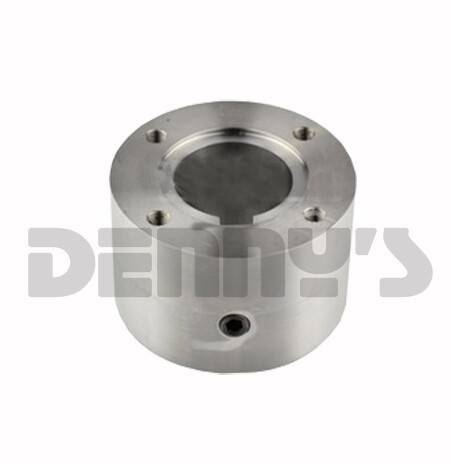

Dana Spicer 2-1-1323-3 PTO Companion Flange 1.875 inch Round Bore with 0.500 Keyway, 3.125 Bolt Circle, 2.375 female pilot

Part Number:
2-1-1323-3

UPC:

023913233587

Your Cost ~~$298.87~~ Sale Price $125.95

You Save $172.92

STATUS: IN STOCK

Dana Spicer 2-1-1323-3

PTO Companion Flange

1.875 inch Round Bore
0.500 Keyway
3.125 Bolt Circle
2.375 female pilot
1280/1310 series

Spicer

Dana Spicer 2-1-1323-3 PTO Companion Flange 1.875 inch Round Bore with 0.500 Keyway, 3.125 Bolt Circle, 2.375 female pilot

Dana Spicer 2-1-1323-3 PTO Companion Flange 1.875 inch Round Bore with 0.500 Keyway, 3.125 Bolt Circle, 2.375 female pilot

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$298.87~~ Sale Price $125.95

You Save $172.92

Dana Spicer 2-1-1323-3

COMPANION FLANGE for power take off applications

Series 1280, 1310

P - 1.875 Inch Diameter Bore
- X - 0.500 in. Keyway
C - 2.375 in Female Pilot
B - Bolt Circle Diameter - 3.125 in
- 4 Bolt Holes 0.375-24 Diameter THREADED
- Bolt Pattern - Rectangular
  - 2.0 inches
  - 2.375 inches

W - Set Screw THREAD Diameter - 0.375 in.
- W - Set Screw Location - 12
- Set Screw Included

R - Hub Diameter - 2.438 in.
F - Length Through Hole - 2.420 in.
G - Flange Face to End of Hub - 2.500 in.
A - Total Swing Diameter - 3.875 in.

Dana Spicer 2-1-1323-3 PTO Companion Flange 1.875 inch Round Bore with 0.500 Keyway, 3.125 Bolt Circle, 2.375 female pilot

Dana Spicer 2-1-1323-3 PTO Companion Flange 1.875 inch Round Bore with 0.500 Keyway, 3.125 Bolt Circle, 2.375 female pilot
