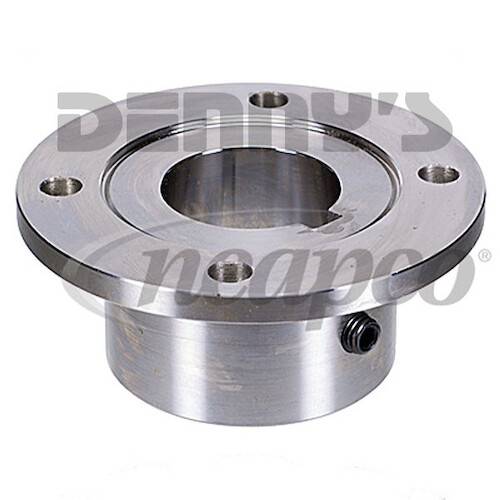

Neapco N4-1-1133-13 PTO Companion Flange 2.250 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot
Part Number:
N4-1-1133-13


UPC:
083869016498
Your Cost $120.47 Sale Price $114.73
You Save $5.74
STATUS:  FACTORY DIRECT TO YOU

Neapco N4-1-1133-13

Power Take Off Companion Flange

  • 2.250 inch Round Bore
  • 0.500 Keyway
  • 4.750 Bolt Circle
  • 3.750 female pilot
  • 1480/1550 series



Neapco
Neapco N4-1-1133-13 PTO Companion Flange 2.250 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot
Neapco N4-1-1133-13 PTO Companion Flange 2.250 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  FACTORY DIRECT TO YOU
YOUR COST:  $120.47 Sale Price $114.73
You Save $5.74

Neapco N4-1-1133-13

COMPANION FLANGE for power take off applications

Series 1480, 1550

  • - 2.250 Inch Diameter Bore
    • X - 0.500 in. Keyway
  • C - 3.750 in Female Pilot
  • B - Bolt Circle Diameter - 4.750 in
    • 4 Bolt Holes 0.515 in. Diameter Drilled
    • Bolt Pattern - Rectangular
      • 3.053 inches
      • 3.639 inches
  • W - Set Screw THREAD Diameter  - 0.500 in.
    • W - Set Screw Location - 12
    • Set Screw Included
  • R - Hub Diameter -
  • F - Length Through Hole -  2.490 in.
  • G - Flange Face to End of Hub  - 2.500 in.
  • A - Total Swing Diameter - 5.875 in.



Neapco N4-1-1133-13 PTO Companion Flange 2.250 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot

Neapco N4-1-1133-13 PTO Companion Flange 2.250 inch Round Bore with 0.500 Keyway, 4.750 Bolt Circle, 3.750 female pilot
