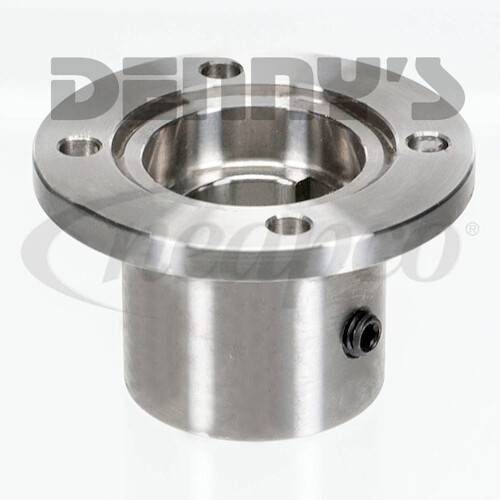

Neapco N1-1-273 Power Take Off Companion Flange 1000 series Fits 1.250 inch Round Shaft with .312 KEY
|
|
Your Cost
$85.95
STATUS:
IN STOCK
|
|
Neapco N1-1-273
COMPANION FLANGE for power take off applications
- SERIES 1000
- P - FITS 1.250 INCH DIAMETER SHAFT
- C - FEMALE PILOT DIAMETER - 2.250 INCHES
- X - KEYWAY WIDTH - 0.312 INCHES
- W - KEYWAY LOCATION - 12
- W - SET SCREW THREAD DIAMETER - 0.375 INCHES
- W - SET SCREW LOCATION - 9
- R - HUB DIAMETER -
- F - LENGTH THROUGH HOLE -
- G - FLANGE FACE TO END OF HUB - 2.125 INCHES
- A - TOTAL SWING DIAMETER - 3.500 INCHES
- B - BOLT CIRCLE DIAMETER - 2.750 INCHES
- 4 BOLT HOLES 0.328 DIAMETER
UPC: 083869012971
Part Number: N1-1-273
|
Neapco N1-1-273 Power Take Off Companion Flange 1000 series Fits 1.250 inch Round Shaft with .312 KEY
|
