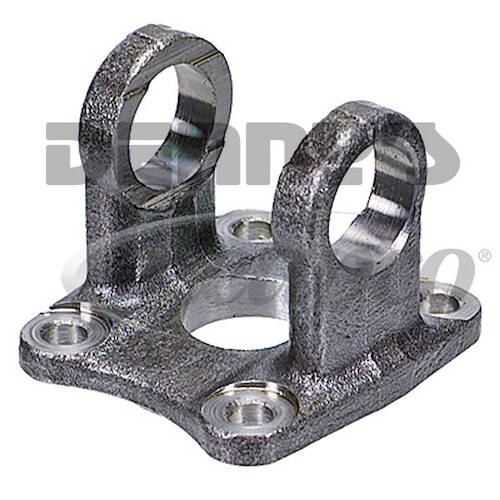

Neapco 10-0229 Power Take Off Flange Yoke 1000 series
Part Number:
10-0229


UPC:
083869012957
Your Cost $59.95
STATUS:  IN STOCK

NEAPCO 10-0229

1000Series Flange Yoke

  • A - Flange or Swing Diameter = 3.375 inches
  • B - Bolt Circle Diameter = 2.750 inches
    • Bolt Hole Diameter = 0.328 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.250 inches
    • Center Pilot = MALE
  • Series = 1000
    • Inside "C" Clip Style
    • Width between inside lock surfaces = 1.5 inches
    • D - U-Joint Bearing cap diameter = .938 inches
  • G - Center of u-joint bore to Face of flange = 1.562 inches
  • X - inches 1.768
  • Y - inches 2.107
  • Special Notes: Use on 1000 series PTO applications



Neapco
Neapco 10-0229 Power Take Off Flange Yoke 1000 series
Neapco 10-0229 Power Take Off Flange Yoke 1000 series
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $59.95

NEAPCO 10-0229

1000Series Flange Yoke

  • A - Flange or Swing Diameter = 3.375 inches
  • B - Bolt Circle Diameter = 2.750 inches
    • Bolt Hole Diameter = 0.328 inches
    • Bolt Holes = 4
    • Bolt Holes = DRILLED
  • C - Center Pilot Hole Diameter = 2.250 inches
    • Center Pilot = MALE
  • Series = 1000
    • Inside "C" Clip Style
    • Width between inside lock surfaces = 1.5 inches
    • D - U-Joint Bearing cap diameter = .938 inches
  • G - Center of u-joint bore to Face of flange = 1.562 inches
  • X - inches 1.768
  • Y - inches 2.107
  • Special Notes: Use on 1000 series PTO applications



Denny's Driveshafts Flange Yoke Dimension Diagram

Neapco 10-0229 Power Take Off Flange Yoke 1000 series

Neapco 10-0229 Power Take Off Flange Yoke 1000 series
