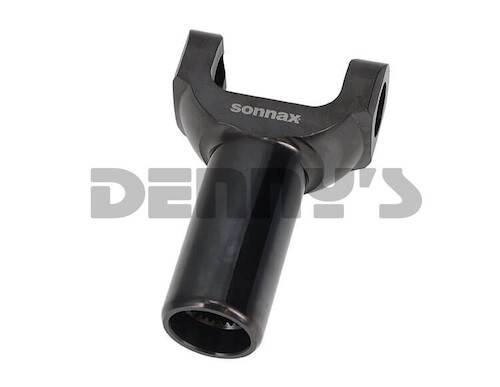

2060101S Sonnax Transmission Slip Yoke 1330 series 32 splines fits T-400, 4L80, 4L85 TRUCK Transmissions that originallly had a bolt on yoke at rear output

Part Number:
2060101S

UPC:

Your Cost $195.00 **
**Add to cart to see today's price

STATUS: IN STOCK - FREE SHIPPING

SONNAX 2060101S

1330 Series 32 spline T-400, 4L80, 4L85 Transmission Slip yoke

Specifically designed to replace the factory bolt on yoke for T-400, 4L80, 4L85 Truck Transmissions with the Threaded Hole in the center of the Output shaft.
DOES NOT FIT.... T400 RV or Motor Home Transmission
Replaces the truck style bolt on yoke with a normal car style slip yoke which will allow for proper slip travel and bushing contact for best performance. A must have when using any T-400, 4L80 or 4L85 truck transmission with the threaded hole in the output shaft.

With this counterbored slip yoke you can now use a normal car style driveshaft.

This slip yoke will slide all the way into the transmission.

To determine correct driveshaft center to center length for this slip yoke
- Push the slip yoke all the way into transmission and pull it out 3/4 inch minimum to 1 inch maximum. Now measure from center of u-joint hole in slip yoke to the center of the u-joint at the rear end yoke. This dimension will be the correct center to center required for your driveshaft to fit correctly using this slip yoke.

We designed this yoke to solve this problem over 30 years ago.

Barrel Diameter = 1.886 inches
Fits U-joint cap diameter = 1.062 inches
Fits U-joint width = 3.625 inches
Outside Snap Ring Style
Series = 1330
Spline count = 32
Counterbored - YES

2060101S Sonnax Transmission Slip Yoke 1330 series 32 splines fits T-400, 4L80, 4L85 TRUCK Transmissions that originallly had a bolt on yoke at rear output

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $195.00 **
**Add to cart to see today's price

SONNAX 2060101S

1330 Series 32 spline T-400, 4L80, 4L85 Transmission Slip yoke

Specifically designed to replace the factory bolt on yoke for T-400, 4L80, 4L85 Truck Transmissions with the Threaded Hole in the center of the Output shaft.
DOES NOT FIT.... T400 RV or Motor Home Transmission
Replaces the truck style bolt on yoke with a normal car style slip yoke which will allow for proper slip travel and bushing contact for best performance. A must have when using any T-400, 4L80 or 4L85 truck transmission with the threaded hole in the output shaft.

With this counterbored slip yoke you can now use a normal car style driveshaft.

This slip yoke will slide all the way into the transmission.

To determine correct driveshaft center to center length for this slip yoke
- Push the slip yoke all the way into transmission and pull it out 3/4 inch minimum to 1 inch maximum. Now measure from center of u-joint hole in slip yoke to the center of the u-joint at the rear end yoke. This dimension will be the correct center to center required for your driveshaft to fit correctly using this slip yoke.

We designed this yoke to solve this problem over 30 years ago.

Barrel Diameter = 1.886 inches
Fits U-joint cap diameter = 1.062 inches
Fits U-joint width = 3.625 inches
Outside Snap Ring Style
Series = 1330
Spline count = 32
Counterbored - YES
