DANA 30 FRONT - 1967-1971 FORD U-100 BRONCO > PINION YOKE > 1310 SERIES

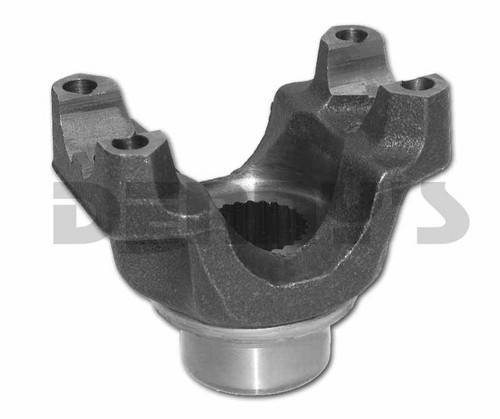

NEAPCO N2-4-8091X Pinion Yoke 1310 series 26 spline fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

Part Number:
N2-4-8091X

UPC:

083869005300

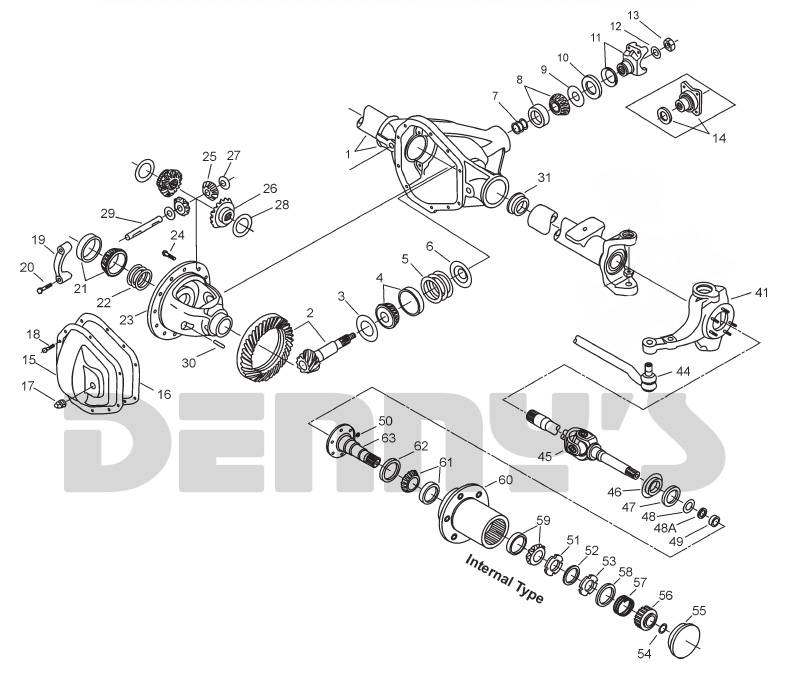

Diagram Number:
11

Your Cost ~~$82.55~~ Sale Price $78.62

You Save $3.93

STATUS: IN STOCK

NEAPCO N2-4-8091X

26 spline 1310 series ...U-Bolt style

Fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

Neapco

NEAPCO N2-4-8091X Pinion Yoke 1310 series 26 spline fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

NEAPCO N2-4-8091X Pinion Yoke 1310 series 26 spline fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$82.55~~ Sale Price $78.62

You Save $3.93

NEAPCO N2-4-8091X

26 spline 1310 series ...U-Bolt style

Fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
26 splines
U-Bolt style....U-Bolt Set sold separately...see item at bottom of page
SPLINE OD = 1.146
D = 1.062
E = 3.219
Q = 1.500
R = 1.552
S = 3.000

image/jpeg

NEAPCO N2-4-8091X Pinion Yoke 1310 series 26 spline fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

NEAPCO N2-4-8091X Pinion Yoke 1310 series 26 spline fits 1966 to 1971-1/2 FORD BRONCO with DANA 30 Front Axle

You May Also Need These Parts to Complete the Job

Dana Spicer 44895 Pinion Seal fits Dana 44 Part#: 44895 $8.95	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
Dana Spicer 2-94-28X U-BOLT SET 1310-1330 Series for 1.062 bearing cap diameter Part#: 2-94-28X $5.98
