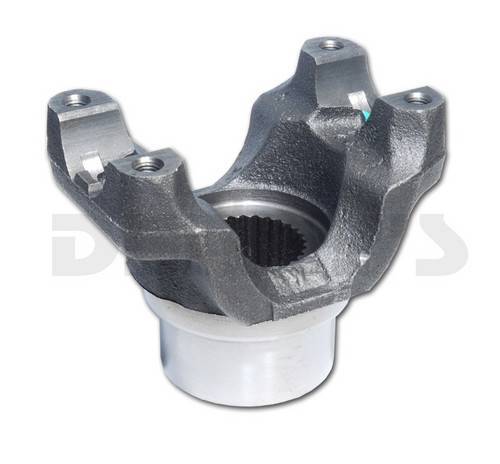

Dana Spicer 2-4-3801-1X Pinion Yoke 1310 series fits CHEVY DANA 60 with 29 spline Strap and Bolt style
Part Number:
2-4-3801-1X


UPC:
023913232023

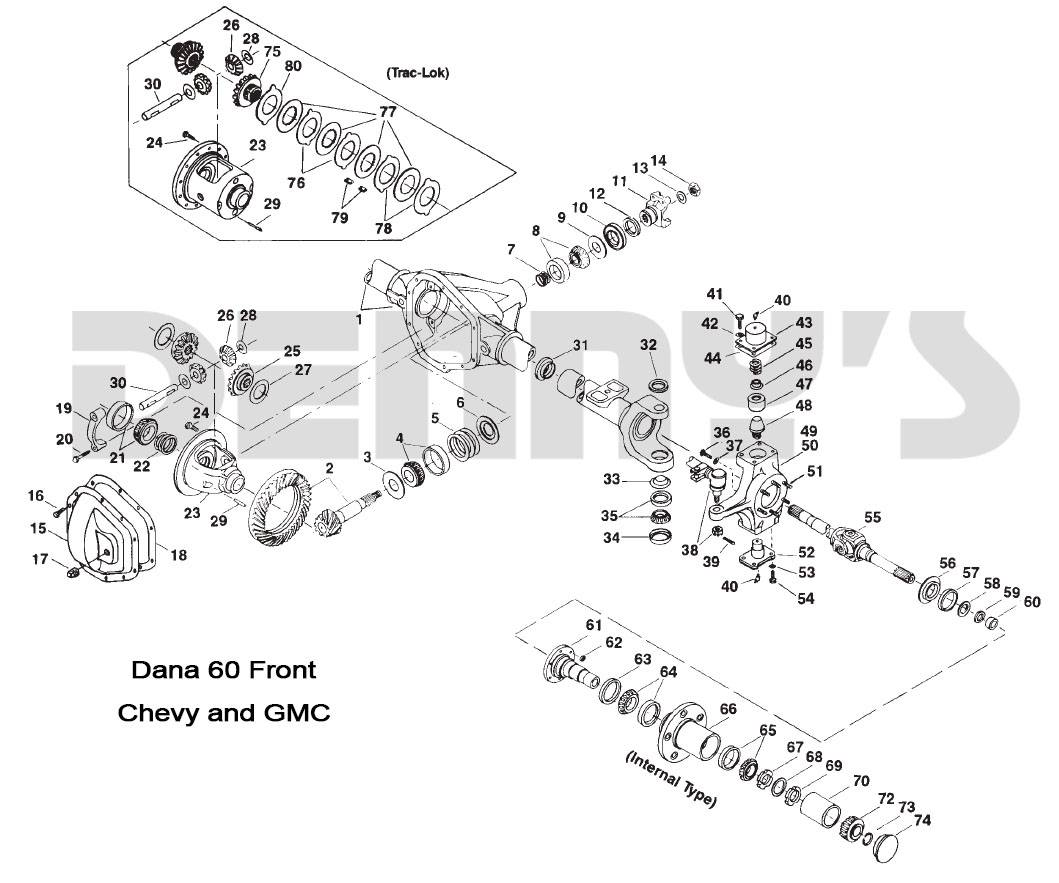

Diagram Number:
11
Your Cost $58.95
STATUS:  SOLD OUT...More Coming Soon

Dana Spicer 2-4-3801-1X

Dana 60 29 spline 1310 series Pinion Yoke.  Strap and Bolt Style


Spicer
Dana Spicer 2-4-3801-1X Pinion Yoke 1310 series fits CHEVY DANA 60 with 29 spline Strap and Bolt style
Dana Spicer 2-4-3801-1X Pinion Yoke 1310 series fits CHEVY DANA 60 with 29 spline Strap and Bolt style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  SOLD OUT...More Coming Soon
YOUR COST:  $58.95

Dana Spicer 2-4-3801-1X

Dana 60 29 spline 1310 series Pinion Yoke. Strap and Bolt Style.

  • 1310 Series
  • 29 spline
  • Strap and Bolt Style.. sold separately please see bottom of this page
  • SPLINE OD = 1.276
  • D = 1.062
  • E = 3.219
  • Q = 1.500
  • R = 1.875
  • S = 2.938

NOTES:

  • Dana Spicer 2-4-3801-1X is same as 2-4-8391-1X
