DANA 60 FRONT - CHEVY > PINION YOKE > 1410 SERIES

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series Chevy with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style

Part Number:
3-4-5711-1X

UPC:

023913229702

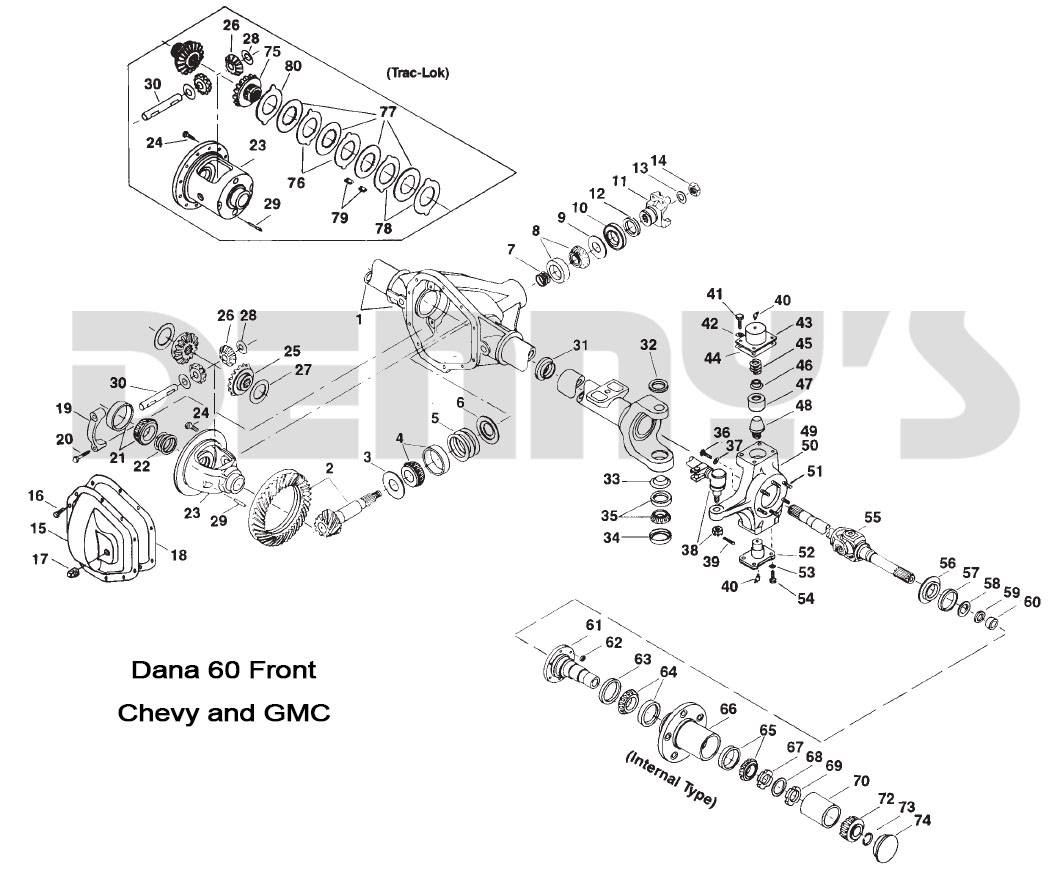

Diagram Number:
11

Your Cost $88.95

Sorry, sold out

CLICK HERE to be NOTIFIED when this item is available

STATUS: SOLD OUT...More Coming Soon

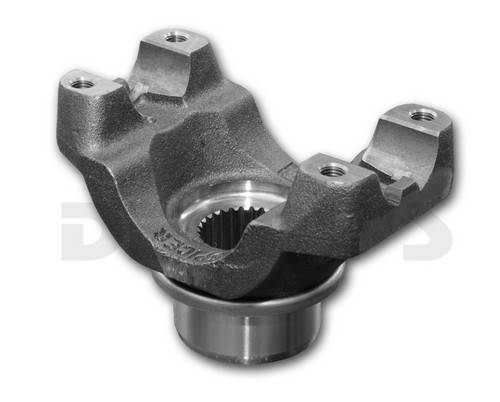

DANA SPICER 3-4-5711-1X

PINION YOKE

Fits Chevy and GMC Dana 60 and 70 with 29 spline pinion
1410 series
strap and bolt style
SPLINE OD = 1.276
D = 1.188
E = 4.188
Q = 1.500
R = 1.875
S = 3.188

NOTES:

Dana Spicer 3-4-5711-1X is same as 3-4-11891-1X
Dana Spicer 3-4-5711-1X replaces 3-4-11851-1

Spicer

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series Chevy with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series Chevy with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: SOLD OUT...More Coming Soon

YOUR COST: $88.95

DANA SPICER 3-4-5711-1X

PINION YOKE

Fits Chevy and GMC Dana 60 and 70 with 29 spline pinion
1410 series
strap and bolt style
SPLINE OD = 1.276
D = 1.188
E = 4.188
Q = 1.500
R = 1.875
S = 3.188

NOTES:

Dana Spicer 3-4-5711-1X is same as 3-4-11891-1X
Dana Spicer 3-4-5711-1X replaces 3-4-11851-1

image/jpeg

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series Chevy with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style

Dana Spicer 3-4-5711-1X Pinion Yoke 1410 series Chevy with Dana 60 and 70 with 29 spline pinion Strap & Bolt Style

You May Also Need These Parts to Complete the Job

Dana Spicer 5-160X Universal Joint 1410 Series Part#: 5-160X $24.95	Dana Spicer 5-1410X Universal Joint 1410 Series NON Greaseable Part#: 5-1410X $31.95
DANA SPICER 3-70-28X Strap and Bolt set fits 1.188 bearing cap diameter 1.806 CL on 1350/1410 series Dana Spicer brand end yokes Part#: 3-70-28X $7.95
