DANA 60 FRONT - FORD 1975 to 2004 > PINION YOKE > 1310 SERIES

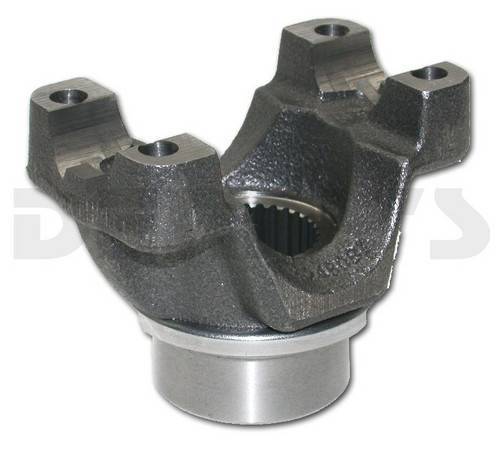

Neapco N2-4-3801X Pinion Yoke U-Bolt Style 1310 series fits Dana 60 with 29 spline pinion

Part Number:
N2-4-3801X

UPC:

083869005294

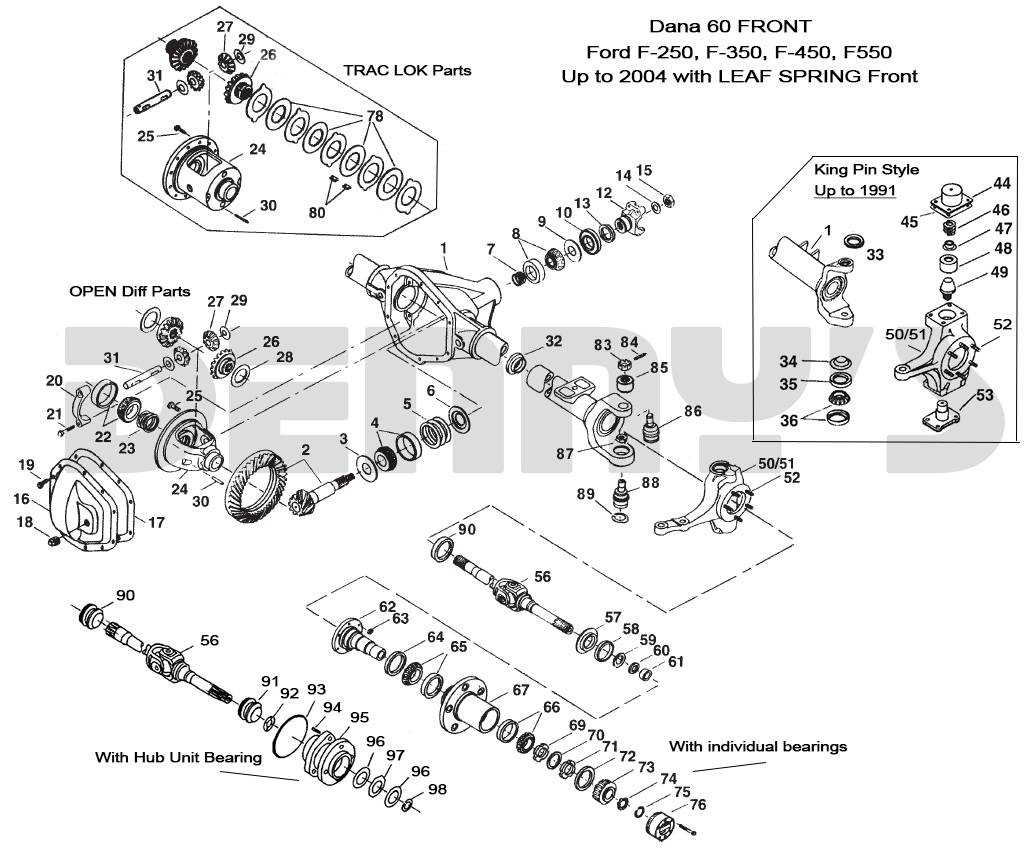

Diagram Number:
12

Your Cost ~~$94.38~~ Sale Price $89.89

You Save $4.49

STATUS: IN STOCK

Dana 60 29 spline 1310 series Pinion Yoke. U-Bolt Style

Neapco

Neapco N2-4-3801X Pinion Yoke U-Bolt Style 1310 series fits Dana 60 with 29 spline pinion

Neapco N2-4-3801X Pinion Yoke U-Bolt Style 1310 series fits Dana 60 with 29 spline pinion

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$94.38~~ Sale Price $89.89

You Save $4.49

Dana 60 29 spline 1310 series Pinion Yoke. U-Bolt Style.

Fits 1310 Series universal joint 3 7/32 inches wide with 1 1/16 inch bearing caps.
29 spline
U-Bolt Style...U-Bolts sold separately
SPLINE OD = 1.276
D = 1.062
E = 3.219
Q = 1.500
R = 1.875
S = 2.938

image/jpeg

Neapco N2-4-3801X Pinion Yoke U-Bolt Style 1310 series fits Dana 60 with 29 spline pinion

Neapco N2-4-3801X Pinion Yoke U-Bolt Style 1310 series fits Dana 60 with 29 spline pinion

You May Also Need These Parts to Complete the Job

Dana Spicer 42449 Pinion Seal fits Chevy, GMC, Ford, Dodge with Dana 60 Part#: 42449 $7.95	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66	Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 ~~$15.76~~ $14.95
Dana Spicer 2-94-28X U-BOLT SET 1310-1330 Series for 1.062 bearing cap diameter Part#: 2-94-28X $5.98
