Dana Spicer 10086725 SPINDLE SMALL Bearing style fits 1973 to 1976-1/2 Chevy 1/2 ton K5, K10, Suburban and GMC 1/2 ton Jimmy, K15 with DANA 44 Front axle

Part Number:
10086725

UPC:

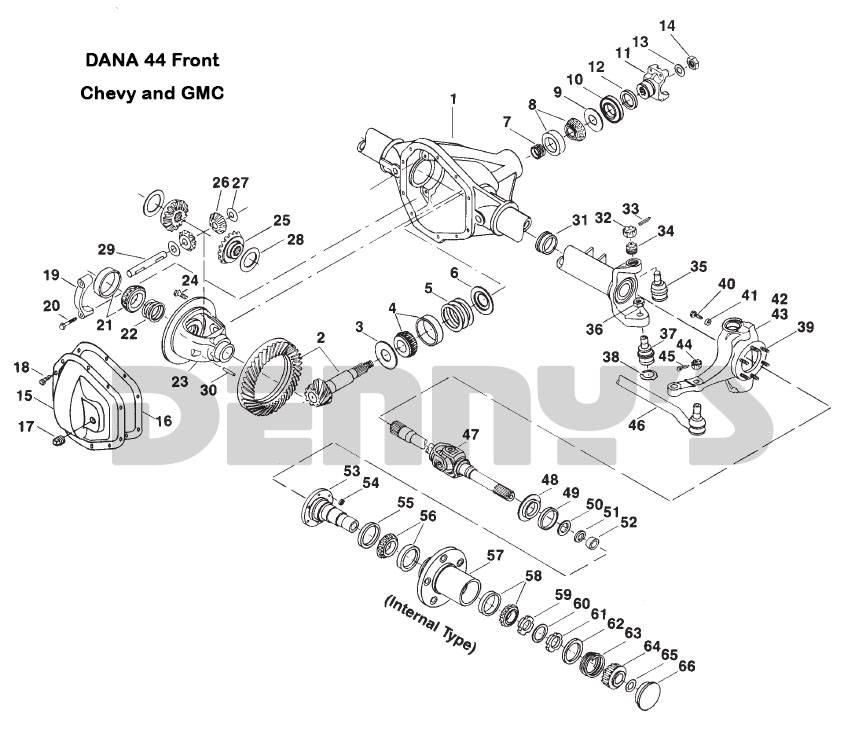

Diagram Number:
53

Your Cost $74.95

STATUS: IN STOCK

DANA SPICER 10086725

Replaces obsolete Dana Spicer 706528X
SPINDLE with internal bearing, spindle seals and thrust washer
Fits Chevy 1/2 ton K5 Blazer, K10, and Suburban with DANA 44 front axle
- 1973, 1974, 1975, 1976, 1976-1/2
Fits GMC 1/2 ton K5 Jimmy, K15 with DANA 44 front axle
- 1973, 1974, 1975, 1976, 1976-1/2
6 Bolt Holes
Small Bearing style

Dana Spicer 10086725 SPINDLE SMALL Bearing style fits 1973 to 1976-1/2 Chevy 1/2 ton K5, K10, Suburban and GMC 1/2 ton Jimmy, K15 with DANA 44 Front axle

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $74.95

DANA SPICER 10086725

Replaces obsolete Dana Spicer 706528X
SPINDLE with internal bearing, spindle seals and thrust washer
Fits Chevy 1/2 ton K5 Blazer, K10, and Suburban with DANA 44 front axle
- 1973, 1974, 1975, 1976, 1976-1/2
Fits GMC 1/2 ton K5 Jimmy, K15 with DANA 44 front axle
- 1973, 1974, 1975, 1976, 1976-1/2
6 Bolt Holes
Small Bearing style

DIMENSIONS:

KEYWAY SLOT = .250 in. wide (1/4 inch)
BORE ID = 1.300 inches
A = 1.622 in. OD for Outer Wheel Bearing
B = 1.778 in. OD for Inner Wheel Bearing
C = 2-1/2 in. OD for Seal
D = 3-3/8 in.
E = 7/16 in.
F = 3/8 in.
G = 5-5/8 in.
H = 6-1/2 in.
K = 4-3/4 in.
Bolt Holes = 6
Bolt Hole Diameter = .400 in.

INCLUDES

(1) Internal bearing factory installed
(2) Rubber seals
(1) Thrustwasher

How to Measure a 4X4 Front Axle Spindle at Denny's Driveshafts

Dana Spicer 10086725 SPINDLE SMALL Bearing style fits 1973 to 1976-1/2 Chevy 1/2 ton K5, K10, Suburban and GMC 1/2 ton Jimmy, K15 with DANA 44 Front axle
