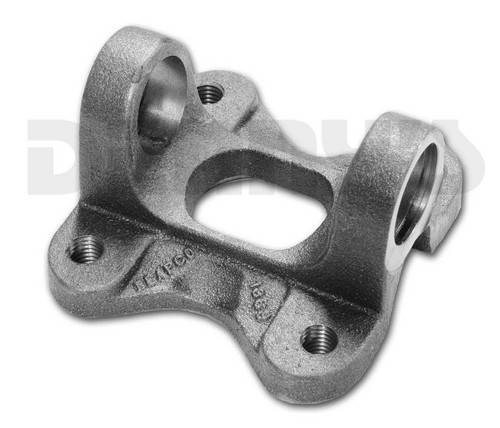

Neapco N3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle

Part Number:
N3-2-1619

UPC:

083869021256

Your Cost ~~$53.33~~ Sale Price $50.79

You Save $2.54

STATUS: IN STOCK

Neapco N3-2-1619

1350 Series Flange Yoke

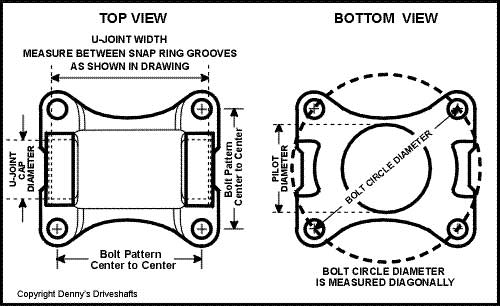

A - Flange or Swing Diameter = 5.360 inches
B - Bolt Circle Diameter = 4.250 inches
- Bolt Hole Diameter = 0.472 inches
- Bolt Holes = 4
- Bolt Holes = THREADED
C - Center Pilot Hole Diameter = 2 inches
- Center Pilot = FEMALE
Series = 1350
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.625 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
G - Center of u-joint bore to Face of flange = 1.625 inches
X - 3 inches
Y - 3 inches
Special Notes: 12 MM THREADED HOLES, METRIC FLANGE
- Dimensionally the same as N3-2-1579 but N3-2-1619 has the threaded mounting holes

Neapco N3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: ~~$53.33~~ Sale Price $50.79

You Save $2.54

Neapco N3-2-1619

1350 Series Flange Yoke

A - Flange or Swing Diameter = 5.360 inches
B - Bolt Circle Diameter = 4.250 inches
- Bolt Hole Diameter = 0.472 inches
- Bolt Holes = 4
- Bolt Holes = THREADED
C - Center Pilot Hole Diameter = 2 inches
- Center Pilot = FEMALE
Series = 1350
- Outside Snap Ring Style
- U-Joint Width between snap rings = 3.625 inches
- D - U-Joint Bearing cap diameter = 1.187 inches
G - Center of u-joint bore to Face of flange = 1.625 inches
X - 3 inches
Y - 3 inches
Special Notes: 12 MM THREADED HOLES, METRIC FLANGE
- Dimensionally the same as N3-2-1579 but N3-2-1619 has the threaded mounting holes

image/jpeg

Neapco N3-2-1619 Flange Yoke with THREADED Mounting Holes 1350 series fits Ford with 4.250 inch bolt circle
