Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

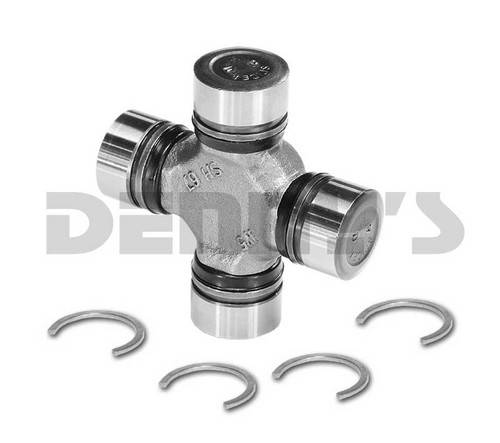

Dana Spicer 5-260X Universal Joint for 4x4 Front Axle 1.062 cap OD
Part Number:
5-260X


UPC:
023913121112
Your Cost $29.95
STATUS:  IN STOCK

Dana Spicer 5-260X - 4x4 Front Axle U-joint.

Commonly known as the "Small" axle u-joint.  This u-joint was found on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks before they realized that it was too small and started to use the larger and stronger 5-297X now the 5-760X  Easy to spot on open knuckle front ends by measuring the bearing cap diameter.  Utilizes inside "C" Clips to lock u-joint in place.

  • Dimension A = 2.188 inches ( 2 3/16 inches )
  • Dimension B = 2.188 inches ( 2 3/16 inches )
  • Dimension C = 1.062 inches ( 1 1/16 inches )
  • Dimension D = 1.062 inches ( 1 1/16 inches )
  • Non Greaseable




Spicer
Dana Spicer 5-260X Universal Joint for 4x4 Front Axle 1.062 cap OD
Dana Spicer 5-260X Universal Joint for 4x4 Front Axle 1.062 cap OD
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $29.95

Dana Spicer 5-260X - 4x4 Front Axle U-joint.

Commonly known as the "Small" axle u-joint.  This u-joint was found on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks before they realized that it was too small and started to use the larger and stronger 5-297X now the 5-760X   Easy to spot on open knuckle front ends by measuring the bearing cap diameter.  Utilizes inside "C" Clips to lock u-joint in place.

  • Dimension A = 2.188 inches ( 2 3/16 inches )
  • Dimension B = 2.188 inches ( 2 3/16 inches )
  • Dimension C = 1.062 inches ( 1 1/16 inches )
  • Dimension D = 1.062 inches ( 1 1/16 inches )
  • Non Greaseable



Application Chart

  • 1969 - 1972 Chevy K-5 Blazer & GMC Jimmy... all 1 1/16 inch diameter bearing cap
  • 1970 - 1972 Chevy K-10 & K-20, GMC K-15, K-25 Pick-Up... all 1 1/16 inch diameter bearing cap
  • 1972 -  Dodge W100, W150, W200, W250... all 1 1/16 inch diameter bearing cap
  • 1966 - 1977 Ford Bronco
  • 1970 - 1972 Ford F100... all 1 1/16 inch diameter bearing cap
  • 1970 - 1973 IHC Scout
  • 1984 - 1993 Jeep Briarwood... all 1 1/16 inch diameter bearing cap
  • 1967 - 1973 Jeep C101
  • 1984 - 1994 Jeep Cherokee Compact XJ... all 1 1/16 inch diameter bearing cap
  • 1963 - 1983 Jeep CJ5
  • 1963 - 1975 Jeep CJ6
  • 1976 -1986 Jeep CJ7
  • 1986 - 1992 Jeep Comanche
  • 1967 - 1973 Jeep Commando
  • 1963 - 1973 Jeep Gladiator
  • 1993 - Jeep Grand Cherokee
  • 1963 - 1977 Jeep J262, J264, J362, J364
  • 1967- 1973  Jeepster
  • 1967 - 1973 Jeepster C101
  • 1981 - 1985 Jeep Scrambler CJ8
  • 1963 - 1977 Jeep Wagoneer
  • 1984 - 1991 Jeep Wagoneer Compact XJ... all 1 1/16 inch diameter bearing cap
  • 1987 - 1995 Jeep Wrangler YJ... all 1 1/16 inch diameter bearing cap
