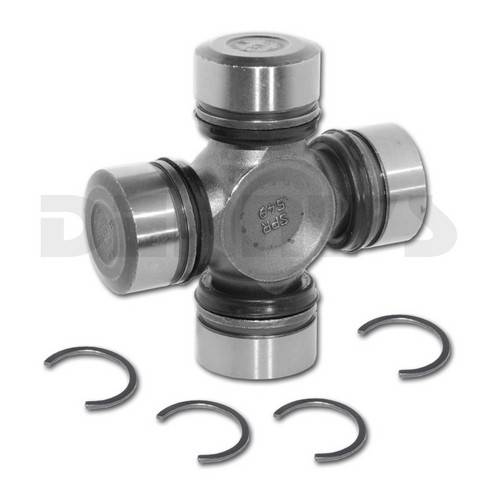

DANA SPICER 5-760X

4x4 Front Axle U-joint.  Maintenance Free

This u-joint is used on early Jeep, Bronco, Chevy, Dodge, International and Ford 4X4 trucks.     Easy to spot on open knuckle Dana 30 and 44 front axles and also on GM Corporate 8.5 inch front axles by measuring the bearing cap diameter.  Utilizes inside "C" Clips to lock u-joint in place.

• Dimension A = 2.188 inches ( 2 3/16 inches )
• Dimension B = 2.188 inches ( 2 3/16 inches )
• Dimension C = 1.188 inches ( 1 3/16 inches )
• Dimension D = 1.188 inches ( 1 3/16 inches )

Application Chart

• 1972 - 1991 Chevy K-5 Blazer & GMC Jimmy... all 1 3/16 inch diameter bearing cap
• 1972 - 1986 Chevy K-10 & K-20, GMC K-15, K-25 Pick-Up... all 1 3/16 inch diameter bearing cap
• 1972 - 1993 Dodge W100, W150, W200, W250... all 1 3/16 inch diameter bearing cap
• 1973 - Dodge W300, W350... all 1 3/16 inch diameter bearing cap
• 1973 - 1975 Dodge WM300 POWER WAGON... all 1 3/16 inch diameter bearing cap
• 1994 - 2001 Dodge RAM 1500 with Dana 44... all 1 3/16 inch diameter bearing cap
• 1994 - 1999 Dodge RAM 2500 with Dana 44... all 1 3/16 inch diameter bearing cap
• 1974 - 1993 Dodge RAMCHARGER... all 1 3/16 inch diameter bearing cap
• 1978 - 1996 Ford Bronco all 1 3/16 inch diameter bearing cap
• 1975 - 1977 Ford F100 Full Time... all 1 3/16 inch diameter bearing cap
• 1972 - 1977 Ford F100 Part Time... all 1 3/16 inch diameter bearing cap
• 1976 - 1979 Ford F150 Full Time... all 1 3/16 inch diameter bearing cap
• 1976 - 1997 Ford F150 Part Time... all 1 3/16 inch diameter bearing cap
• 1975 - 1979 Ford F250 Full Time with Dana 44... all 1 3/16 inch diameter bearing cap
• 1978 - 1995 Ford F250 Part Time with Dana 44... all 1 3/16 inch diameter bearing cap
• 1980 - 1985 Ford F350 Part Time with Dana 44... all 1 3/16 inch diameter bearing cap
• 1980 - 1997 Ford Ranger ...all 1 3/16 inch diameter bearing cap
• 1974 - 1980 IHC Scout 800 Series all 1 3/16 inch diameter bearing cap
• 1974 - 1979 IHC 100, 110, 120, 900, 1000, 1200 Series all 1 3/16 inch diameter bearing cap
• 1984 - 2001 Jeep Cherokee Compact XJ... all 1 3/16 inch diameter bearing cap
• 1982 - 1988 Jeep 10 Series...all 1 3/16 inch diameter bearing cap
• 1974 - 1988 Jeep 20 Series...all 1 3/16 inch diameter bearing cap
• 1974 - 1981 Jeep 40 Series...all 1 3/16 inch diameter bearing cap
• 1974 - 1983 Jeep Cherokee Full Size  SJ...all 1 3/16 inch diameter bearing cap
• 1994 - 1999 Jeep Grand Cherokee...all 1 3/16 inch diameter bearing cap
• 1983 - 1991 Jeep Grand Wagoneer...all 1 3/16 inch diameter bearing cap
• 1978 - 1983 Jeep Wagoneer...all 1 3/16 inch diameter bearing cap
• 1984 - 1990 Jeep Wagoneer Compact XJ... all 1 3/16 inch diameter bearing cap
• 1997 - 2006 Jeep Wrangler TJ... all 1 3/16 inch diameter bearing cap
• 1993 - 1995 Jeep Wrangler YJ... all 1 3/16 inch diameter bearing cap
