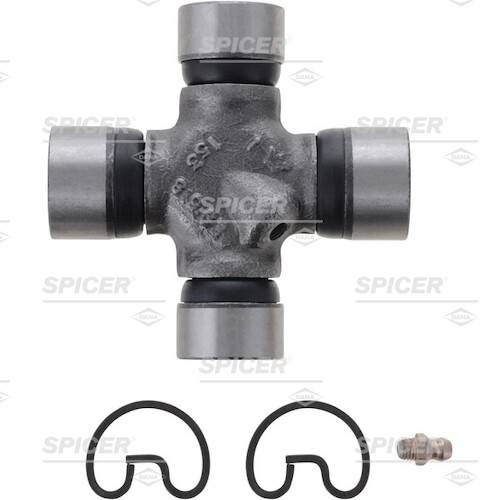

Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style
Part Number:
5-3248X


UPC:
023913488031
Your Cost $41.95
Sorry, sold out
STATUS:  Discontinued Item...See other choices listed

Dana Spicer 5-3248X

Same as Neapco 2-4953

1330 to 1350 Series Spicer Combination Universal Joint.

  • Use this to connect 1330 series Big Cap FORD end yokes to 1350 series driveshafts.
GREASEABLE U-Joint
  • Grease Fitting in body of u-joint
DIMENSIONS
  • 1330 series Ford BIG CAP dimensions
    • Dimension A = 3.625 inches wide
    • Dimension C = 2 bearing caps are 1.125 inch diameter
    • Fits 1330 Big Cap FORD u-bolt style end yokes, pinion yokes, transfer case yokes, transmission yokes
  • 1350 series dimensions
    • Dimension B = 3.625 inches wide
    • Dimension D = 2 bearing caps are 1.188 inch diameter
    • Outside snap rings



Spicer
Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style
Dana Spicer 5-3248X Combination U-joint greaseable Ford Big Cap 1330 Series 3.625 x 1.125 to 1350 Series 3.625 x 1.188 outside snap ring style
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  Discontinued Item...See other choices listed
YOUR COST:  $41.95

Dana Spicer 5-3248X

Same as Neapco 2-4953

1330 to 1350 Series Spicer Combination Universal Joint.

  • Use this to connect 1330 series Big Cap FORD end yokes to 1350 series driveshafts.
GREASEABLE U-Joint
  • Grease Fitting in body of u-joint
DIMENSIONS
  • 1330 series Ford BIG CAP dimensions
    • Dimension A = 3.625 inches wide
    • Dimension C = 2 bearing caps are 1.125 inch diameter
    • Fits 1330 Big Cap FORD u-bolt style end yokes, pinion yokes, transfer case yokes, transmission yokes
  • 1350 series dimensions
    • Dimension B = 3.625 inches wide
    • Dimension D = 2 bearing caps are 1.188 inch diameter
    • Outside snap rings
