Driveshaft and Driveline Parts > Universal Joints > Dana Spicer Universal Joints

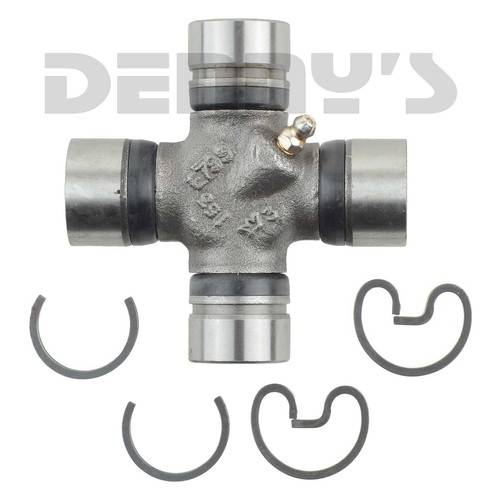

Dana Spicer 5-3205X Combination U-joint converts 1350 Series to GM 3R Series GREASEABLE

Part Number:
5-3205X

UPC:

023913126209

Your Cost $41.35

STATUS: IN STOCK

Dana Spicer 5-3205X

NOTE: This universal joint is actually a Neapco U-Joint in the Dana Spicer box. They are doing this until they tool up to actually make this part in the Dana factory. It is a very good quality universal joint that will deliver excellent performance and it will fit correctly.

Combination Universal Joint
- Converts Outside snap ring 1350 series to Inside "C" clip style GM 3R Series
- Greaseable universal joint - fitting in body
- Requires regular maintenance intervals for long life

1350 series dimensions
- Dimension B = 3.625 inches (3 5/8) wide
- Dimension D = 2 bearing caps are 1.187 inch diameter
- outside snap rings
GM 3R series dimensions
- Dimension A = 2.562 inches (2 9/16) wide
- Dimension C = 2 bearing caps are 1.125 inch diameter with inside "C" Clips to lock the cap in place.
- inside "C" Clips
- The span between the yoke inner surfaces where the "C" Clips lock in is 2.556 inches

Spicer

Dana Spicer 5-3205X Combination U-joint converts 1350 Series to GM 3R Series GREASEABLE

Dana Spicer 5-3205X Combination U-joint converts 1350 Series to GM 3R Series

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $41.35

Dana Spicer 5-3205X

NOTE: This universal joint is actually a Neapco U-Joint in the Dana Spicer box. They are doing this until they tool up to actually make this part in the Dana factory. It is a very good quality universal joint that will deliver excellent performance and it will fit correctly.

Combination Universal Joint
- Converts Outside snap ring 1350 series to Inside "C" clip style GM 3R Series
- Greaseable universal joint - fitting in body
- Requires regular maintenance intervals for long life

1350 series dimensions
- Dimension B = 3.625 inches (3 5/8) wide
- Dimension D = 2 bearing caps are 1.187 inch diameter
- outside snap rings
GM 3R series dimensions
- Dimension A = 2.562 inches (2 9/16) wide
- Dimension C = 2 bearing caps are 1.125 inch diameter with inside "C" Clips to lock the cap in place.
- inside "C" Clips
- The span between the yoke inner surfaces where the "C" Clips lock in is 2.556 inches
