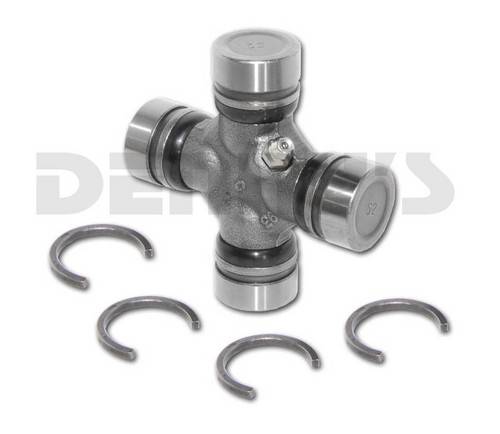

Dana Spicer 5-3242X Universal Joint 2.342 inches between INSIDE clips 1.00 inch diameter caps
Part Number:
5-3242X


UPC:
023913487959
Your Cost $29.95
STATUS:  IN STOCK

Dana Spicer 5-3242X

2.342 inches between INSIDE clips 1.00 inch diameter caps

Greaseable Universal Joint

  • GREASEABLE U-Joint
  • Dimensions:
    • Dimension "A" & "B" =The span between the yoke inner surfaces where the "C" Clips lock in is 2.342 inches
    • Dimension "C" & "D" =All 4 bearing caps are 1 inch diameter with inside "C" Clips to lock the cap in place.
  • This universal joint is commonly used to connect the transmission slip yoke to the driveshaft
Spicer
Dana Spicer 5-3242X Universal Joint 2.342 inches between INSIDE clips 1.00 inch diameter caps
Dana Spicer 5-3242X Universal Joint 2.342 inches between INSIDE clips 1.00 inch diameter caps
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $29.95

Dana Spicer 5-3242X

2.342 inches between INSIDE clips 1.00 inch diameter caps

Greaseable Universal Joint

  • GREASEABLE U-Joint
  • Dimensions:
    • Dimension "A" & "B" =The span between the yoke inner surfaces where the "C" Clips lock in is 2.342 inches
    • Dimension "C" & "D" =All 4 bearing caps are 1 inch diameter with inside "C" Clips to lock the cap in place.
  • This universal joint is commonly used to connect the transmission slip yoke to the driveshaft
