Denny's Driveshaft builds custom steel and aluminum driveshafts for your high performance car, street rod, race car, van, pick up or 4x4 truck

Dana Spicer 3-4-14711-1X pinion yoke 1410 series 29 splines fits 2004-2009 Chevy Express, GMC Savana 2500/3500
Part Number:
3-4-14711-1X


UPC:
023913234881
Your Cost $95.95
STATUS:  IN STOCK

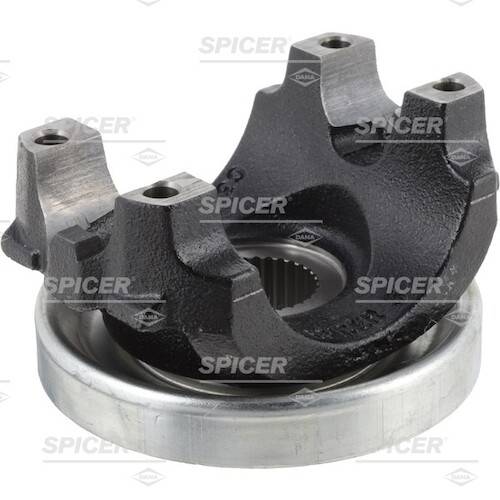

Dana Spicer 3-4-14711-1X

Pinion Yoke

  • Fits Chevy Express, GMC Savana 2500/3500
    • Fits model years 2004, 2005, 2006, 2007, 2008, 2009
    • NOTE: Please check dimensions carefully to match yours before purchasing
  • 1410 Series
    • (E) 4.188 span between tabs
    • (D) 1.188 cap diameter
  • 29 splines
  • (R) Seal Hub diameter - 1.875
  • (S) CL to end - 3.200
  • (Q) Length through hole 1.500
  • Replaces OE Part Number 88982426
Spicer
Dana Spicer 3-4-14711-1X pinion yoke 1410 series 29 splines fits 2004-2009 Chevy Express, GMC Savana 2500/3500
Dana Spicer 3-4-14711-1X pinion yoke 1410 series 29 splines fits 2004-2009 Chevy Express, GMC Savana 2500/3500
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $95.95

Dana Spicer 3-4-14711-1X

Pinion Yoke

  • Fits Chevy Express, GMC Savana 2500/3500
    • Fits model years 2004, 2005, 2006, 2007, 2008, 2009
    • NOTE: Please check dimensions carefully to match yours before purchasing
  • 1410 Series
    • (E) 4.188 span between tabs
    • (D) 1.188 cap diameter
  • 29 splines
  • (R) Seal Hub diameter - 1.875
  • (S) CL to end - 3.200
  • (Q) Length through hole 1.500
  • Replaces OE Part Number 88982426
image/jpeg
Dana Spicer 3-4-14711-1X pinion yoke 1410 series 29 splines fits 2004-2009 Chevy Express, GMC Savana 2500/3500

Dana Spicer 3-4-14711-1X pinion yoke 1410 series 29 splines fits 2004-2009 Chevy Express, GMC Savana 2500/3500
