Driveshaft and Driveline Parts > Universal Joints > COMBINATION-CONVERSION U-Joints > Combo U-Joint 1330 to 3R series 3.625 OUTSIDE to 2.562 INSIDE > 1 1/8 FORD X 1 1/8 GM Cap Diameter

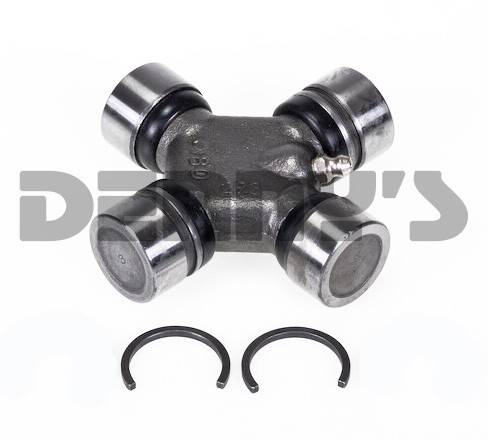

7754489 Combination Universal Joint to connect Ford Big Cap 1330 series 1.125 to GM 3R series 1.125 cap diameter

Part Number:
7754489

UPC:

Your Cost $34.95

STATUS: IN STOCK

Part number: 7754489

Combination Universal Joint

To connect Ford Big Cap 1330 series 1.125 cap diameter to GM 3R series 1.125 cap diameter
- Same as Spicer 5-3255X
A = 2.556 distance between inner yoke surfaces for c-clips...(3.625 outside of cap to outside of cap)
B = 3.625 to fit between tabs on end yoke
C = 1.125 with groove for c-clip
D = 1.125 use with 2-94-58X u-bolts - see bottom of this page for u-bolts

Neapco

7754489 Combination Universal Joint to connect Ford Big Cap 1330 series 1.125 to GM 3R series 1.125 cap diameter

7754489 Combination Universal Joint to connect Ford Big Cap 1330 series 1.125 to GM 3R series 1.125 cap diameter

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $34.95

Part number: 7754489

Combination Universal Joint

To connect Ford Big Cap 1330 series 1.125 cap diameter to GM 3R series 1.125 cap diameter
- Same as Spicer 5-3255X
A = 2.556 distance between inner yoke surfaces for c-clips...(3.625 outside of cap to outside of cap)
B = 3.625 to fit between tabs on end yoke
C = 1.125 with groove for c-clip
D = 1.125 use with 2-94-58X u-bolts - see bottom of this page for u-bolts

image/jpeg

7754489 Combination Universal Joint to connect Ford Big Cap 1330 series 1.125 to GM 3R series 1.125 cap diameter

7754489 Combination Universal Joint to connect Ford Big Cap 1330 series 1.125 to GM 3R series 1.125 cap diameter

You May Also Need These Parts to Complete the Job

Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke

Dana Spicer 2-94-58X U-Bolt Set fits 1.125 bearing cap diameter 1.590 CL for FORD Big Cap 1310 or 1330 pinion yoke, transfer case yoke or transmission yoke
Part#: 2-94-58X

$6.85
