Driveshaft and Driveline Parts > PTO and AGRICULTURAL PARTS and SHAFTS > PTO End Yoke - ROUND Shaft > .875 ROUND SHAFT with .250 KEYWAY > 1310 Series

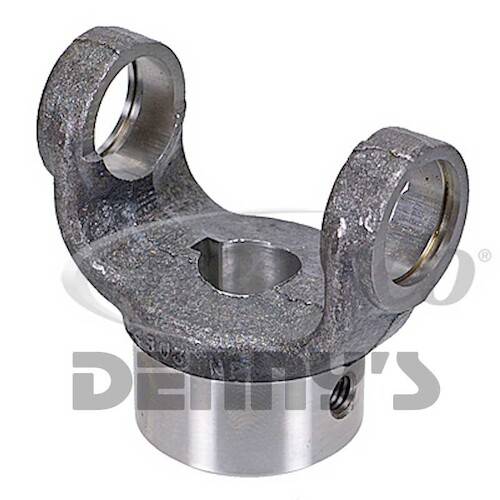

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

Part Number:
N2-4-583

UPC:

083869015903

Your Cost $61.95

STATUS: IN STOCK

Neapco N2-4-583

PTO End Yoke

1310 series
0.875 round bore
0.250 key
0.375 set screw
outside snap ring style

Neapco

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK

YOUR COST: $61.95

Neapco N2-4-583

PTO End Yoke

1310 series
0.875 round bore
0.250 key
0.375 set screw
outside snap ring style

End Yokes - Round Bore	Model/Part #: N2-4-583
Bore	0.875
R) Hub Dia.	2.000
Set Screw Dia.	0.375
E) Dimension for outside snap ring lockup	3.219
D) Bore dimension for u-joint cap	1.062
Keyway	0.250
S) C/L to Hub End	2.562
Q) Length through hole	1.625

How to measure a PTO end yoke at Denny's Driveshafts

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

Neapco N2-4-583 PTO end yoke 0.875 round shaft with 0.250 key 1310 series

You May Also Need These Parts to Complete the Job

Dana Spicer 449 Set Screw for PTO End Yoke .375 - 16 NO Hole Part#: 449 $0.95	1505-1 WOODRUFF KEY .250 wide 1 inch long Part#: 1505-1 $1.39
Dana Spicer 449D Set Screw for PTO End Yoke .375 - 16 with hole for safety wire Part#: 449-D $1.55	Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings Part#: 5-153X $13.10
Dana Spicer 378485-25 Square 1/4 inch KEY .250 x .250 x 4.0 inches long Part#: 378485-25 $2.53	Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings Part#: 5-1310-1X $26.95
Neapco 50-3502 Square 1/4 inch key 12 inches long Part#: 50-3502 $7.44	Dana Spicer 5-1310X Universal Joint 1310 Series NON Greaseable 3.219 x 1.062 outside snap rings Part#: 5-1310X $19.66
Neapco 1-0153 Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153 $16.59	Neapco 1-0153G NON Greaseable universal joint 1310 series 3.219 x 1.062 outside snap rings Part#: 1-0153G $20.26

Enter your email address and we'll send you a message when this item is available

Please enter your email address in order to be notified when this item is available.

[ X ]

You May Also Need These Parts to Complete the Job

Dana Spicer 449 Set Screw for PTO End Yoke .375 - 16 NO Hole

Dana Spicer 449 Set Screw for PTO End Yoke .375 - 16 NO Hole

$0.95

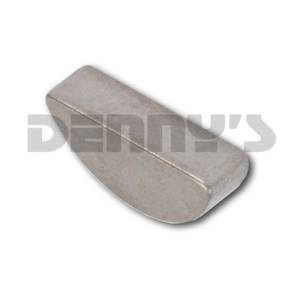

1505-1 WOODRUFF KEY .250 wide 1 inch long

1505-1 WOODRUFF KEY .250 wide 1 inch long

$1.39

Dana Spicer 449D Set Screw for PTO End Yoke .375 - 16 with hole for safety wire

Dana Spicer 449D Set Screw for PTO End Yoke .375 - 16 with hole for safety wire

$1.55

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings

Dana Spicer 5-153X Universal Joint Greaseable 1310 series 3.219 x 1.062 outside snap rings

$13.10

Dana Spicer 378485-25 Square 1/4 inch KEY .250 x .250 x 4.0 inches long

Dana Spicer 378485-25 Square 1/4 inch KEY .250 x .250 x 4.0 inches long

$2.53

Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings

Dana Spicer 5-1310-1X Universal Joint 1310 Series GREASEABLE 3.219 x 1.062 outside snap rings

$26.95

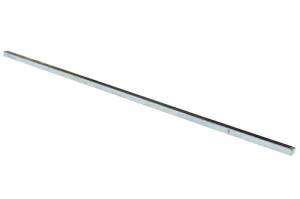

Neapco 50-3502 Square 1/4 inch key 12 inches long
