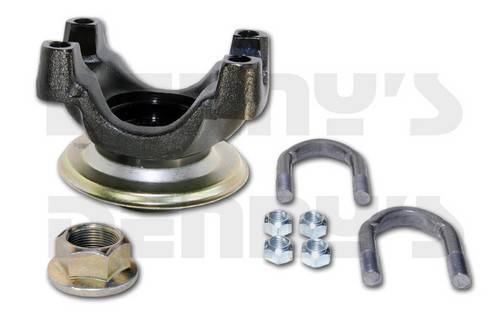

9877740 Pinion Yoke 1350 Series Forged U-Bolt style fits 1985 to 1992 FORD F250, F350 Super Duty 10.25 inch Sterling rear ends

Part Number:
9877740

UPC:

Your Cost $120.95

STATUS: IN STOCK - FREE SHIPPING

9877740

Pinion Yoke for FORD Super Duty Rear End
- Fits Ford F250, F350 Super Duty Truck with 10.25 inch FORD Sterling Rear
  - 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

31 Splines 1.343 spline diameter
U- Bolt style
FORGED Steel for extra strength
Comes with pinion nut and u-bolt set
1350 Series - fits 1350 series universal joint 5-178X or 5-1350X ... see bottom of this page
- E = Fits Universal joint 3.625 inches (3-5/8) wide cap to cap
- D = Fits u-joint bearing cap diameter 1.188 inch (1-3/16)
- Q = 1.265 inches through splined hole
- S = 3.150 inches tall
- R = 1.812 inches seal surface diameter

THIS Yoke is 3-1/8 inches TALL

IMPORTANT: Late 1993, 1994, 1995, 1996, 1997, 1998 Ford 10.25 inch Sterling rear end pinion yokes could be 3.5 inches (3-1/2) tall. Please check yours to be sure before ordering.

CLICK HERE if you need the 3-1/2 inch tall yoke part number 9870041 for 10.25 inch from 1993 to 1998

NOTES:

DOES NOT fit Ford Super duty with DANA rear end
NOT compatible with 1330 series driveshaft.
- Requires 1330 to 1350 combination u-joint to make connection. CLICK HERE
NOT compatible with 1410 series driveshaft
- CLICK HERE for 1410 series Ford Sterling pinion yokes

9877740 Pinion Yoke 1350 Series Forged U-Bolt style fits 1985 to 1992 FORD F250, F350 Super Duty 10.25 inch Sterling rear ends

Click for Larger Photo

FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE

STATUS: IN STOCK - FREE SHIPPING

YOUR COST: $120.95

This item qualifies for FREE GROUND SHIPPING to the lower 48 states

9877740

Pinion Yoke for FORD Super Duty Rear End
- Fits Ford F250, F350 Super Duty Truck with 10.25 inch FORD Sterling Rear
  - 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992

31 Splines 1.343 spline diameter
U- Bolt style
FORGED Steel for extra strength
Comes with pinion nut and u-bolt set
1350 Series - fits 1350 series universal joint 5-178X or 5-1350X ... see bottom of this page
- E = Fits Universal joint 3.625 inches (3-5/8) wide cap to cap
- D = Fits u-joint bearing cap diameter 1.188 inch (1-3/16)
- Q = 1.265 inches through splined hole
- S = 3.150 inches tall
- R = 1.812 inches seal surface diameter

THIS Yoke is 3-1/8 inches TALL

IMPORTANT: Late 1993, 1994, 1995, 1996, 1997, 1998 Ford 10.25 inch Sterling rear end pinion yokes could be 3.5 inches (3-1/2) tall. Please check yours to be sure before ordering.

CLICK HERE if you need the 3-1/2 inch tall yoke part number 9870041 for 10.25 inch from 1993 to 1998

NOTES:

DOES NOT fit Ford Super duty with DANA rear end
NOT compatible with 1330 series driveshaft.
- Requires 1330 to 1350 combination u-joint to make connection. CLICK HERE
NOT compatible with 1410 series driveshaft
- CLICK HERE for 1410 series Ford Sterling pinion yokes

9877740 Pinion Yoke 1350 Series Forged U-Bolt style fits 1985 to 1992 FORD F250, F350 Super Duty 10.25 inch Sterling rear ends
