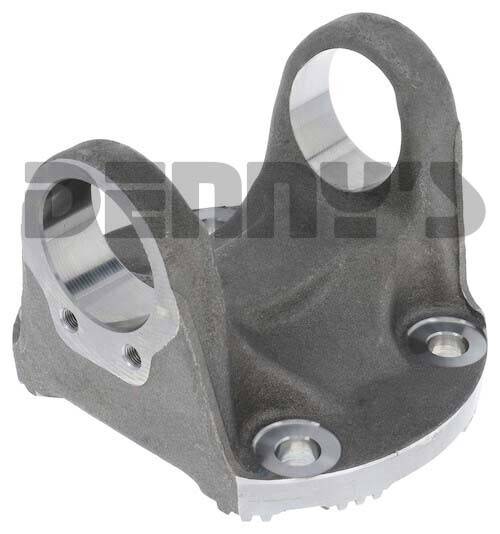

DANA SPICER 170-2-15 Serrated Flange Yoke SPL170 Series
|
|
Your Cost
$339.95
STATUS:
FACTORY DIRECT - SPECIAL ORDER
|
|
DANA SPICER 170-2-15
SPL170 Series Serrated Flange Yoke
UPC: 023913245986
Part Number: 170-2-15
|
DANA SPICER 170-2-15 Serrated Flange Yoke SPL170 Series
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY DIRECT - SPECIAL ORDER
YOUR COST:
$339.95
>>>>> SPECIAL ORDER PART: This part number is special ordered from the factory and shipped direct to you. It is NOT Cancellable and NOT Returnable. Please make your selection carefully! <<<<<
|
DANA SPICER 170-2-15
SPL170 Series Serrated Flange Yoke
- A - Flange or Swing Diameter = 7.087 inches
- B - Bolt Circle Diameter = 5.906 inches
- Bolt Hole Diameter = 0.551 inches
- Bolt Holes = 4
- Bolt Holes = DRILLED
- C - Center Pilot Hole Diameter
- Series = SPL170
- U-Joint Width = 6.026 inches
- D - U-Joint Bearing cap diameter = 2.166 inches
- G - Center of u-joint bore to Face of flange = 3.425 inches
- Special Notes: 180mm flange w/serrated flange face
|
|
DANA SPICER 170-2-15 Serrated Flange Yoke SPL170 Series
|
|
