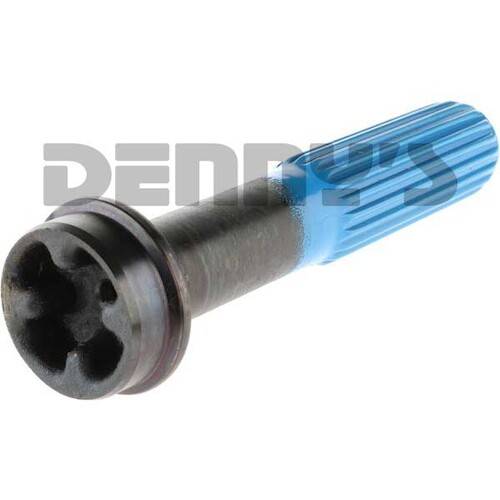

Dana Spicer 2-40-01930 SPLINE Fits 2.0 inch .120 wall tube
|
|
Your Cost
$82.37
Sorry, sold out
STATUS:
FACTORY BACK ORDER at this time
|
|
Dana Spicer 2-40-01930
SPLINE Fits 2.0 inch .120 wall tubing
UPC: 023913467265
Part Number: 2-40-01930
|
Dana Spicer 2-40-01930 SPLINE Fits 2.0 inch .120 wall tube
|
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS: FACTORY BACK ORDER at this time
YOUR COST:
$82.37
|
Dana Spicer 2-40-01930
SPLINE Fits 2.0 inch .120 wall tubing
- Fits 19/20 Spline SLIP YOKE designed for 1.312 inch diameter spline
- Fits TUBE DIAMETER = 2.0 inch OUTSIDE TUBE Diameter
- Fits TUBE WALL THICKNESS = .120 inch Tube wall thickness
- Major SPLINE Diameter = 1.312
- SPLINES = 19 based on 20 splines
- K = 6.913
- L = 3.500
- R = 6.338
- Butt diameter = 1.771
|
|
Dana Spicer 2-40-01930 SPLINE Fits 2.0 inch .120 wall tube
|
|
