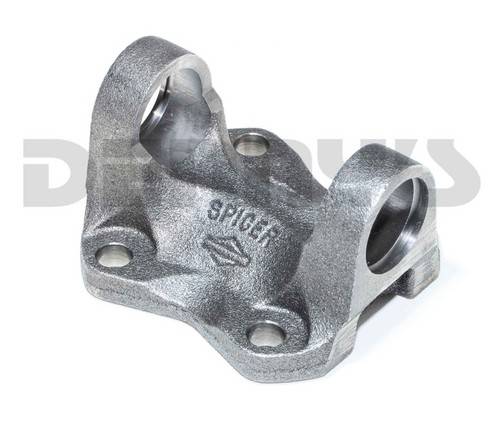

Dana Spicer 2-2-329 Flange Yoke 1310 series use with Dana Spicer 2-1-1881X Companion Flange
Part Number:
2-2-329


UPC:
023913228873
Your Cost $28.02
STATUS:  IN STOCK

DANA SPICER 2-2-329

1310 Series flange Yoke to fit Jaguar Independent rear ends.
  Designed to replace the original equipment round flange yoke found on Most Jaguar Dana 44 rear ends.  Bolt pattern is 2.0 X 2.375 and has a Male pilot 2.375 diameter.

Use with Dana Spicer 2-1-1881X


Spicer
Dana Spicer 2-2-329 Flange Yoke 1310 series use with Dana Spicer 2-1-1881X Companion Flange
Dana Spicer 2-2-329 Flange Yoke 1310 series fits Jaguar Dana 44 Rear Differential
FOR FASTER SERVICE, PLEASE ORDER ALL PARTS ONLINE
STATUS:  IN STOCK
YOUR COST:  $28.02

DANA SPICER 2-2-329

1310 Series flange Yoke to fit Jaguar Independent rear ends.  Designed to replace the original equipment round flange yoke found on Most Jaguar Dana 44 rear ends.

  • Bolt pattern is 2 inches by  2.375 inches
  • SERIES 1310
  • C - MALE PILOT DIAMETER -  2.375 INCHES
  • D - U-JOINT BEARING CAP DIAMETER - 1.062 INCHES
  • E - WIDTH OF YOKE  -  3.469 INCHES
  • G - FLANGE FACE TO CENTERLINE  - 1.375 INCHES
  • A - FLANGE SWING DIAMETER - 3.875 INCHES
  • B - BOLT CIRCLE DIAMETER - 3.125 INCHES
  • 4 BOLT HOLES .375 DIAMETER
  • JOINT ANGLE   - 20 DEGREES
  • OUTSIDE SNAP RING
  • X - 2.0 inches
  • Y - 2.375 inches

Use with Dana Spicer 2-1-1881X

Denny's Driveshafts Flange Yoke Dimension Diagram

Dana Spicer 2-2-329 Flange Yoke 1310 series use with Dana Spicer 2-1-1881X Companion Flange

Dana Spicer 2-2-329 Flange Yoke 1310 series fits Jaguar Dana 44 Rear Differential
